Garmin

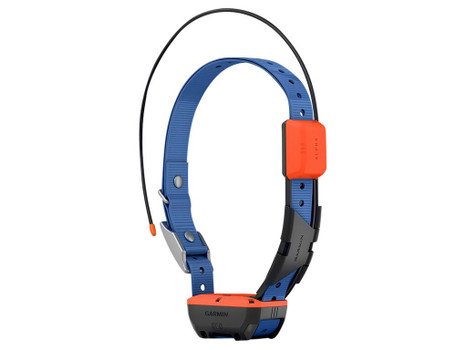

Garmin 0100244700 T 20 Alpha Dog Collar Dog Tracker/Training Compatible w/ Alpha Series/Pro 550 Plus
- SKU:
- P-4AC349F8E236F293A
- UPC:
- 753759292393
- MPN:
- 0100244700
Description
The Alpha T20’s GPS‑and‑Galileo combo gives you a high‑sensitivity lock on your dog’s position, feeding updates every 2.5 seconds. Pair it with a Garmin Alpha handheld and the VHF transmitter pushes that data out to a 9‑mile radius, so you always know where your pack is, even in rugged terrain.
Battery management is built around the dog’s activity. With the standard lithium‑ion pack you get up to 68 hours of dynamic tracking; an optional extended pack stretches that to 136 hours, letting you stay out longer without swapping cells. The battery pack is user‑replaceable via a USB‑C port, so recharging is quick and hassle‑free.
LED beacon lights add a visual cue in dusk or dense brush. You can change colors remotely from the handheld, making the collar a bright, unmistakable marker. The rugged, slim housing is universally sized, and the flexible band survives the toughest outdoor conditions while staying comfortable on the animal’s neck.
Water resistance is rated at 1 ATM (10 m), so rain, river crossings, or a quick dip won’t short out the electronics. All of this fits into a lightweight package—5.9 oz for the transmitter and antenna, 8.4 oz total with the collar—so it won’t weigh the dog down.
Key features
- 9‑mile VHF tracking range – The collar transmits the dog’s location via VHF up to 9 mi, giving you real‑time position updates when used with a compatible Garmin handheld.
- High‑sensitivity GPS / Galileo receiver – Top‑mounted dual‑constellation receiver locks onto satellites quickly, delivering location data every 2.5 seconds for precise tracking.
- Dynamic battery life – 68 hr standard, 136 hr extended – When the dog is moving, the collar conserves power; the standard lithium‑ion pack lasts up to 68 hours, and an optional extended pack doubles that time.
- Multicolor LED beacon lights – Bright LEDs can be remotely switched and set to different colors, helping you locate the dog in low‑light or dense‑cover situations.
- Universal slim design – fits all breeds – A rugged yet thin housing and a flexible band accommodate both large and small dogs without sacrificing durability.
- Water‑resistant 1 ATM rating – The collar can handle splashes and brief sub‑mersion (up to 10 m) without compromising electronics.
Specifications
| Brand | Garmin |
| Optic Ready | No |
| Threaded Barrel | No |
| Manual Safety | No |
| Product name | Alpha T20 Dog Tracking Collar |
| Model / MPN | 010-02447-00 |
| UPC | 753759292393 |
| Country of Origin | Taiwan |
| Dimensions (L × W × H) | 3.2" × 1.8" × 1.4" (8.1 × 4.5 × 3.5 cm) |
| Weight (transmitter & antenna) | 5.9 oz (168.5 g) |
| Weight (total with collar) | 8.4 oz (239.5 g) |
| Shipping Weight | 191.5 g |
| Water rating | 1 ATM (10 m) |
| Battery type | Rechargeable lithium‑ion pack, user‑replaceable |
| Standard battery life (dynamic tracking) | 68 hr (standard pack) / 136 hr (extended pack) |
| Interface | USB‑C |
| GPS | Yes |
| Galileo | Yes |
| Device frequency | MURS (VHF) |
| Tracking / training range | Up to 9 mi |
| LED beacon lights | Multicolor, remote‑activate |
| Software updates | Wi‑Fi® when charging |
| Compatibility – handhelds | Alpha 10, Alpha 100, Alpha 200, Alpha 300, Alpha 300i, Astro 430, PRO 550 Plus |
What’s included
- 1 × Garmin Alpha T20 Dog Tracking Collar (collar only, battery pack not included)
- Owner’s manual
Good to know
- The collar requires a compatible Garmin Alpha handheld (sold separately) to receive location data and control LED beacons.
- Vibration and tone training modes are not available in the U.S.; they may appear in other regions.
- Battery packs are sold separately; the standard pack provides up to 68 hours of dynamic tracking, while the extended pack doubles that runtime.
