MEPRO USA LLC

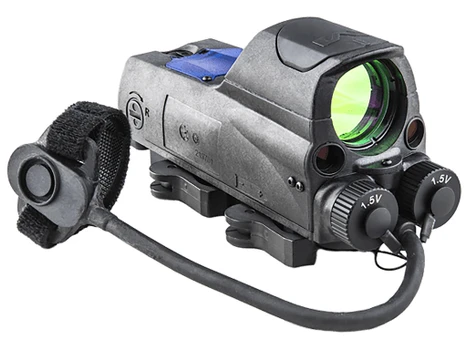

Meprolight USA 0687703 MOR PRO Black 1 x 30 mm 2.2 MOA Dot/Bullseye Reticle Red & IR Laser
- SKU:
- 0687703
- UPC:
- 810013520439
- MPN:
- 0687703
Description
The MOR PRO packs a 1× magnification reflex sight with a 30 mm crystal window that lets you keep both eyes open and maintain an unlimited field of view. Its 2.2 MOA bullseye (or optional 4.3 MOA dot) reticle sits on a second‑focal‑plane layout, so the point of aim stays consistent as you move your head.
Four power sources keep the system alive: daytime fiber‑optic illumination, a tritium capsule that glows for up to ten years, and two AA batteries that drive the LED and laser modes. This redundancy means you won’t be left in the dark if one source dies.
Red and infrared lasers are co‑wired to the same zero, so you can zero the IR laser at night and the red dot will be spot‑on for day use. An anti‑reflection flash guard cuts glare, while the rugged housing meets MIL‑Standard durability requirements.
Key features
- 30 mm Crystal Window – The large 30 mm (1.18 in.) lens gives an unlimited field of view with both eyes open, keeping situational awareness high.
- 2.2 MOA Bullseye/4.3 MOA Dot Reticle – A 2.2 MOA bullseye (or optional 4.3 MOA dot) provides a precise aiming point for rapid target acquisition at any range.
- Integrated Red & IR Lasers – Visible red and infrared lasers share the same zero, letting you transition from day to night without re‑zeroing.
- Four Independent Power Sources – Fiber‑optic, a tritium capsule, and two AA batteries back each system, ensuring operation even if one source fails.
- Anti‑Reflection Flash Guard – A built‑in flash guard reduces lens glare in bright conditions, helping keep your sight concealed.
- Fixed Parallax (Second Focal Plane) – Parallax is fixed, so the reticle stays true regardless of eye position, simplifying zeroing and use.
Specifications
| Brand | MEPRO USA LLC |
| Product name | MOR PRO Red Dot / Reflex Sight |
| Model / MPN | 0687703 |
| UPC | 810013520439 |
| Objective lens diameter | 30 mm |
| Magnification | 1× |
| Reticle type | 2.2 MOA Bullseye / 4.3 MOA Dot |
| Reticle focal plane | Second Focal Plane (SFP) |
| Adjustment increment | 2.2 MOA |
| Parallax adjustment | Fixed (None) |
| Optic coating | Anti‑Reflection |
| Finish | Black |
| Laser colors | Red & IR |
| Battery type | AA |
| Weight (without batteries) | 430 g (15.52 oz) |
| Weight (with batteries) | 2.51 lb (1.14 kg) |
| Dimensions (L×W×H) | 150 mm × 63 mm × 73 mm (5.91 in × 2.48 in × 2.87 in) |
| Waterproof | False |
| Eye relief | Unlimited |
What’s included
- 1 × MEPRO MOR PRO Red Dot / Reflex Sight
- Mounting hardware (screws)
- Pressure‑switch cable with Velcro strap
- Anti‑reflection flash guard
- Owner’s manual
Good to know
- The sight is not rated waterproof; avoid sub‑mersion despite the rugged claim on the manufacturer’s page.
- Four power sources mean you can operate the lasers and LED without batteries, but AA cells are required for extra‑bright LED modes.
- The flash guard is integral to the optic; it does not detach and must remain installed for optimal glare reduction.
Additional Information
Adjustment Increment: |
2.2 moa |
Brand: |
Mepro |
Dot Size: |
2.2 moa |
Maximum Magnification: |
1 |
Minimum Magnification: |
1 |
Model: |
MOR |
Objective: |
30 mm |
Optic Coating: |
Anti-Reflection |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Series: |
Pro |
GTIN / UPC: |
810013520439 |
Optics Type: |
Red Dot / Reflex |
Battery Type: |
AA |
Finish: |
Black |
Reticle Type: |
MOA |
Waterproof: |
False |
Color: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
