AREA 419 FIREARMS

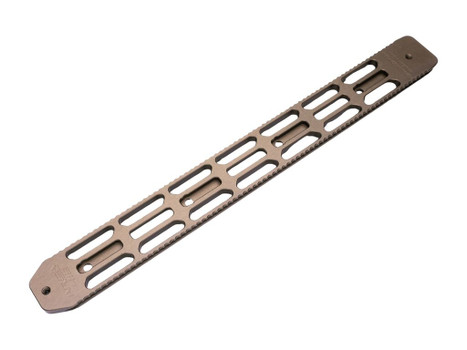

AREA 419 419-ALK-MK22 ARCALOCK RAIL MK22
- SKU:
- 419-ALK-MK22
- UPC:
- 810080181267
- MPN:
- 419-ALK-MK22
Description
The ARCALOCK rail’s 1.5‑inch dovetail is machined to the RRS standard, so any ARCA‑compatible bipod or accessory slides right in. What sets it apart is the serrated side profile that mates with Area 419’s proprietary clamp, turning a friction fit into a true mechanical lock—no more worrying about a mount creeping under fire.
Constructed from 6061‑T6 aluminum and finished with a Type 3 hard‑coat flat‑dark‑earth anodize, the rail resists corrosion and stays low‑key in the field. Every edge is radiused and chamfered, so it won’t snag bags or cut your hands during a quick change.
Designed to run the full length of a Barrett MRAD/MK22 forend, the rail stops flush with the handguard, giving you four mounting points for maximum stability. It’s ready for the Area 419 clamp out of the box, but will still accept any standard ARCA accessory if you prefer a friction‑only setup.
Key features
- RRS 1.5‑inch dovetail – Meets the standard 1.5‑inch ARCA dovetail, ensuring any ARCA‑compatible accessory will slide and lock correctly.
- Serrated rail sides – Serrations engage the Area 419 clamp for a mechanical lock—no friction‑only movement, so your mount stays put under recoil.
- Type 3 Hard‑coat anodized FDE finish – Flat‑dark‑earth anodizing adds corrosion resistance and a low‑glare surface that won’t flash in the field.
- Full‑length forend coverage – The rail extends the entire length of a new MRAD/MK22 forend, stopping at the handguard’s end for maximum accessory placement.
- Backwards compatible with standard ARCA accessories – Even without the clamp, the rail accepts any ARCA mount; the lock‑in feature simply adds extra security.
- Made from 6061‑T6 aluminum – A strong, lightweight alloy keeps the rail sturdy while adding minimal weight to the rifle.
Specifications
| Brand | AREA 419 FIREARMS |
| Optic Ready | Yes |
| Threaded Barrel | No |
| Product name | ARCALOCK Rail MK22 |
| Model / MPN | 419-ALK-MK22 |
| UPC | 810080181267 |
| Material | 6061‑T6 Aluminum |
| Finish | Type 3 Hard‑coat anodized Flat‑Dark‑Earth (FDE) |
| Rail / Attachment Type | ARCA‑Swiss (RRS 1.5‑inch dovetail) |
| Weight | 2 lb (32 oz) |
| Dimensions (L×W×H) | 16 in × 2 in × 2 in |
| Includes | Mounting hardware for M‑LOK |
| Compatibility | Current‑production Barrett MRAD/MK22 rifles with M‑LOK forend; compatible with all ARCA accessories |
| Country of Origin | USA |
What’s included
- 1 × AREA 419 ARCALOCK Rail MK22 (419-ALK-MK22)
- Mounting hardware for M‑LOK installation
- Owner’s installation guide
Good to know
- The rail locks only when used with the proprietary Area 419 clamp; without it the rail functions as a standard ARCA dovetail.
- Designed for rifles with the newer M‑LOK forend; older MRAD models with circular holes are not compatible.
- All edges are radiused and chamfered to prevent snagging on bags or clothing during field changes.
Additional Information
Brand: |
Area 419 Firearms |
Firearm Platform: |
Rifle (Generic) |
Material: |
Aluminum |
Model: |
419-ALK-MK22 |
Product Weight: |
258.0000 gr |
Rail / Attachment Type: |
ARCA-Swiss |
GTIN / UPC: |
810080181267 |
Package Quantity: |
1 |
Packaging Type: |
EA |
