AREA 419 FIREARMS

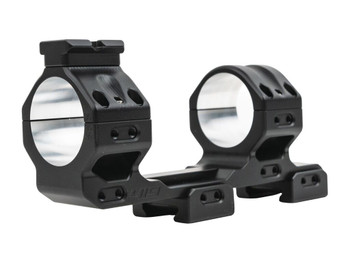

AREA 419 419-TCM-3039 TCM 30DIA 39HI 0MOA
- SKU:
- 419-TCM-3039
- UPC:
- 810080182585
- MPN:
- 419-TCM-3039
Description
When you need a mount that stays dead‑on every shot, the Area 419 Tactical Cantilever gives you a raw‑aluminum, CNC‑machined platform that mates directly to the optic’s base. The 39 mm height puts the optic low enough for comfortable eye relief on AR‑style rifles while the 0 MOA cant means you can zero straight out of the box.
The mount’s design accepts 30 mm through 36 mm tubes, so whether you’re running a Vortex Razor, an Aimpoint, or a night‑vision device, you won’t need extra adapters. The final‑bore‑matched rings lock the optic in place with a grip that’s more reliable than a typical anodized assembly.
Every piece is anodized, then assembled on a custom rail fixture where the caps are torqued to spec (45 in‑lb on the pic section). The result is a robust, repeatable mount that holds up to the rigors of competition and tactical use without adding unnecessary weight.
Key features
- 30 mm tube compatibility – Accepts 30 mm, 34 mm, 35 mm, and 36 mm diameter tubes, letting you mount a wide range of optics without adapters.
- 39 mm (1.54 in) height – Provides the traditional AR‑style cantilever offset, keeping the optic low enough for eye relief while preserving a clean sight picture.
- 0 MOA cant – Zeroed straight out of the box; you can add 20 MOA later if you need extra elevation for long‑range shooting.
- CNC‑machined 7075 aluminum – High‑strength alloy gives a rigid, lightweight platform that resists flex under recoil.
- Weight 1.5 lb, compact dimensions – At 9.5 × 5.8 × 2.8 in it’s easy to install and won’t add bulk to your rifle.
- Final‑bore‑matched rings – Precision‑bored contact surfaces ensure a true, repeatable lockup with your optic, eliminating the need for lapping tools.
Specifications
| Brand | Area 419 Firearms |
| Product name | Tactical One-Piece Cantilever Scope Mount |
| UPC | 810080182585 |
| Weight | 1.5 lb |
| Dimensions (L × W × H) | 9.5 × 5.8 × 2.8 in |
| Tube diameter compatibility | 30 mm, 34 mm, 35 mm, 36 mm |
| Mount height | 39 mm (1.54 in) |
| Cant | 0 MOA (optional 20 MOA) |
| Material | 7075 aluminum |
| Finish | Anodized |
| Torque spec (PIC base) | 45 in‑lb |
What’s included
- 1 × Area 419 Tactical One-Piece Cantilever Scope Mount
- Owner’s manual
Good to know
- Mount is a traditional AR‑style cantilever; bolt‑action platforms typically use the 34 mm (1.34 in) height version.
- No threaded barrel – the mount attaches via Picatinny slots only.
- Blue Loctite is recommended for the pic section, but not required.
- Weight and dimensions are for the assembled mount; shipping weight may be higher.
Additional Information
Brand: |
Area 419 Firearms |
Material: |
Aluminum |
Model: |
419-TCM-3039 |
Mount Height: |
39 mm |
Tube Diameter: |
30 mm |
GTIN / UPC: |
810080182585 |
Rail / Attachment Type: |
Picatinny (MIL-STD-1913) |
Mount Type: |
Cantilever |
Color: |
Black |
Finish: |
Nitride |
Package Quantity: |
1 |
Packaging Type: |
EA |
