AREA 419 FIREARMS

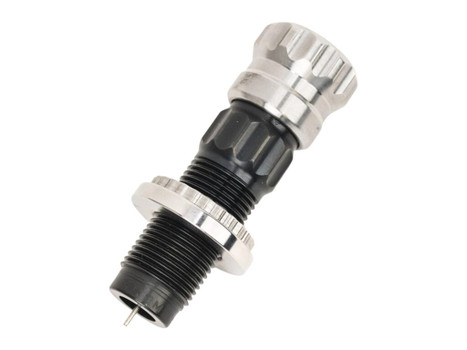

AREA 419 419-ZERODIE-S223 S-SERIES 223 REM DIE
- SKU:
- 419-ZERODIE-S223
- UPC:
- 810080183193
- MPN:
- 419-ZERODIE-S223
Description
The ZERO S‑Series die brings a full‑length neck‑to‑extractor profile to a compact 7/8‑inch form factor, delivering the kind of case uniformity you expect from a match‑grade reloading system. Spring‑eject primer removal and replaceable steel decap pins keep the workflow smooth, while hydraulic shoulder pressure relief lets you dial in the exact headspace needed for consistent brass performance. All units arrive as die‑only; the package includes a universal die ring, a spare decap pin and the basic install tools. Because the threading on early‑run dies may be short, Area 419 recommends using the die with their ZERO press or a compatible shellholder from Redding, Hornady or RCBS. The design isn’t suited for Rock Chucker or Co‑Ax presses, so double‑check your press before ordering. Testers report neck runout under .0005 in and virtually zero variance across batches, making this die a solid choice for anyone building target‑match .223 ammunition.
Key features
- Full‑length neck to extractor sizing – Ensures consistent neck tension and reduces runout to under .0005 in, essential for tight‑group target shooting.
- Spring‑eject primer removal – Automatically ejects spent primers, speeding up the reloading cycle and reducing hand fatigue.
- Replaceable steel decap pins – Allows quick replacement of decapping pins without tools, extending the die’s service life.
- Hydraulic shoulder pressure relief – Provides adjustable shoulder bump to fine‑tune headspace for optimal brass flow and case stretch control.
- Compatible with common shellholders – Works with Redding, Hornady, RCBS and Area 419 modular shellholders; not compatible with Rock Chucker or Co‑Ax presses.
Specifications
| Brand | Area 419 |
| Caliber / Gauge | .223 Remington |
| Product name | ZERO S-Series .223 Remington Sizing Die |
| Model / MPN | 419-ZERODIE-S223 |
| UPC | 810080183193 |
| Cartridge (SAAMI) | .223 Remington |
| Die Type | Decapping |
| Material | Steel |
| Finish | Steel |
| Weight | 2 lbs |
| Dimensions (L×W×H) | 6 × 4 × 3 in |
| Primary Application | Target Match |
| Packaging Type | EA |
| Package Quantity | 1 |
What’s included
- 1 × Area 419 ZERO S-Series .223 Remington Sizing Die (die‑only)
- Area 419 ZERO Universal Die Ring
- Spare steel decap pin
- Install/removal tools
Good to know
- Works with common Redding, Hornady and RCBS shellholders; best results achieved on the Area 419 ZERO press.
- Threading on early‑run dies may be short—verify compatibility with your press before purchase.
- Die does NOT include a shellholder; you’ll need to supply one separately.
- Not compatible with Rock Chucker or Co‑Ax presses; those models will not accept the die’s threading.
Additional Information
Brand: |
Area 419 Firearms |
Cartridge (SAAMI): |
223 Remington |
Die Type: |
Decapping |
Material: |
Steel |
Model: |
419-ZERODIE-S223 |
Packaging Type: |
EA |
Primary Application: |
Target Match |
GTIN / UPC: |
810080183193 |
Finish: |
Steel |
Package Quantity: |
1 |
