Athlon

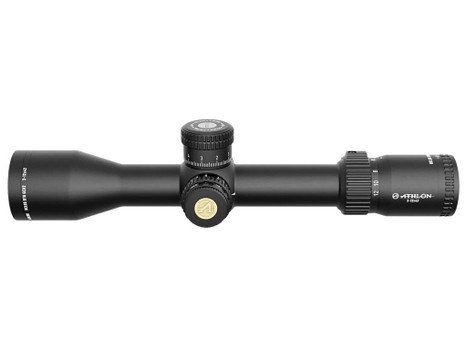

Athlon 214105 Helos BTR Black 2-12x 42mm 30mm Tube Illuminated MIL Reticle
- SKU:
- 214105
- UPC:
- 813869022225
- MPN:
- 214105
Description
The Helos BTR GEN2 pairs a 42 mm objective with a 30 mm tube, giving you a bright, high‑resolution image even at the full 12× setting. Its fully multi‑coated lenses preserve contrast and color fidelity, so you can spot a target at 800 yards and still see detail. The scope’s eye relief of 3.6 in keeps the cheek comfortably positioned for extended shooting sessions, while the adjustable objective parallax lets you fine‑tune the sight picture for precise long‑range work.
At the heart of the optic is the AHMR2 MIL illuminated reticle, mounted in the first focal plane. The reticle grows and shrinks with magnification, meaning your hold‑over points stay accurate from 2× to 12×. Illumination is powered by a CR2032 battery, giving a clear dot in low‑light conditions. The exposed windage and elevation turrets feature a lock‑in mechanism and a precision zero‑stop, so after a quick adjustment you can return to your original zero with a single click—ideal for fast‑moving tactical or hunting scenarios.
Key features
- 2‑12× Magnification Range – Zooms from a handy 2× for close‑range shots out to 12× for extended targets, giving you flexibility without swapping optics.
- 30 mm Tube, Fully Multi‑Coated – The larger tube lets you mount larger objective lenses while the multi‑coat maximizes light transmission and color fidelity across the whole zoom range.
- First‑Focal‑Plane AHMR2 MIL Reticle – Reticle scales with magnification, so hold‑over points stay true at any power; the illuminated MIL dot aids low‑light acquisition.
- Exposed Locking Turrets with Zero‑Stop – Pull‑up to dial, push‑down to lock—quick, repeatable adjustments that snap back to your original zero for fast re‑engagements.
- 0.1 mrad (≈0.34 MOA) Clicks – Fine adjustment increments let you dial in precise windage and elevation changes without overshooting.
- 3.6 in Eye Relief, Adjustable Objective Parallax – Comfortable eye relief reduces cheek weld strain, and the objective‑parallax knob lets you eliminate sight picture shift at longer ranges.
Specifications
| Brand | Athlon |
| Product name | Helos BTR GEN2 2-12x42mm AHMR2 FFP IR MIL Riflescope |
| Model / MPN | 214105 |
| UPC | 813869022225 |
| Color | Black |
| Finish | Matte |
| Optics Type | Riflescope |
| Magnification Minimum | 2× |
| Magnification Maximum | 12× |
| Objective Lens Diameter | 42 mm |
| Tube Diameter | 30 mm |
| Eye Relief | 3.6 in |
| Adjustment Increment | 0.1 mrad |
| Field of View | 55.7 ft @ 100 yd |
| Parallax Adjustment | Adjustable (Objective) |
| Reticle Type | AHMR2 MIL |
| Reticle Focal Plane | First Focal Plane (FFP) |
| Illuminated Reticle | Yes |
| Battery Type | CR2032 |
| Waterproof | No |
| Package Quantity | 1 |
What’s included
- 1 × Athlon Helos BTR GEN2 2-12x42mm AHMR2 FFP IR MIL Riflescope
Good to know
- The illumination dial is intentionally stiff; it will loosen with use over time but is not user‑adjustable initially.
- Not waterproof—protect the scope from moisture and sub‑zero conditions to avoid damage.
- Mount on a Picatinny or Weaver rail; the 30 mm tube fits standard 1‑in rings.
- Reticle illumination requires a CR2032 battery; replace when brightness dims.
- Zero‑stop returns you to the exact zero you set, but be sure to lock the turrets after dialing.
Additional Information
Adjustment Increment: |
0.1 mrad |
Brand: |
Athlon |
Eye Relief: |
3.6 in |
Field of View: |
55.7 ft@100yd |
Maximum Magnification: |
12 |
Minimum Magnification: |
2 |
Model: |
Helos BTR |
Objective: |
42 mm |
Optic Coating: |
Multi-Coated |
Overall Length: |
11.800 in |
Parallax Adjustment: |
Adjustable (Objective) |
Reticle Focal Plane: |
First Focal Plane (FFP) |
Tube Diameter: |
30 mm |
GTIN / UPC: |
813869022225 |
Optics Type: |
Riflescope |
Battery Type: |
CR2032 |
Color: |
Black |
Finish: |
Matte |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Other |
Waterproof: |
False |
