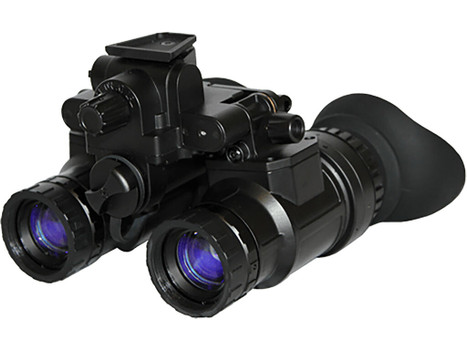

ATN NVGOPS3153HPW PS31-3 HFW Night Vision Goggles Matte Black 1x18mm Generation 3 Auto-Gated White Phosphor, 64-72 Ip/mm, A Grade Resolution

(No reviews yet) Write a Review
SKU:
NVGOPS3153HPW
UPC:
658175124535
MPN:
NVGOPS3153HPW
$12,303.84

Description

The PS31‑3 HFW packs two 31 mm image‑intensifier tubes into a lightweight, matte‑finished housing. The dual‑tube design creates true binocular depth perception, which eases navigation over uneven terrain and improves target acquisition when you’re moving between light and dark zones. Each tube is a Gen 3 auto‑gated white‑phosphor intensifier, automatically adjusting gain to keep the picture bright without blooming, and delivering an A‑grade resolution of 64‑72 Ip/mm.

Because the tubes pivot independently, you can run the goggles as a true binocular, swing one tube into a monocular stance, or fold both tubes flat against a helmet for a low‑profile carry mode. The 18 mm objective and 51 ft field of view at 100 yd give a clear, wide picture, while the built‑in IR illuminator extends usability into total darkness. A CR123A battery provides up to 300 hours of operation, and the unit is sealed waterproof for use in rain or humid environments.

Key features

  • 18 mm Objective – Large objective gathers more light, improving image brightness in low‑light environments.
  • 1× Magnification – True‑to‑scale view lets you maintain situational awareness without sacrificing depth perception.
  • 31 mm Dual Tubes – Independent tube housings provide binocular depth perception or can be pivoted for monocular use or helmet mounting.
  • Gen 3 Auto‑Gated White Phosphor – Auto‑gain circuitry keeps the image clear across a wide range of lighting conditions, while white‑phosphor offers a clearer, more natural image.
  • 51 ft @ 100 yd Field of View – Wide view area lets you spot movement and navigate terrain without constantly moving the head.
  • 300‑Hour Battery Life (CR123A) – Extended runtime reduces the need for frequent battery changes during prolonged operations.
  • Matte, Waterproof Finish – Rugged finish protects the device from the elements and reduces glare.
  • Includes Carrying Case & Helmet Mount – Ready‑to‑go out of the box with a soft case, helmet mount, lens tissue and an instruction manual.

Specifications

BrandATN
Product namePS31-3 HFW Night Vision Goggles
Model / MPNNVGOPS3153HPW
UPC658175124535
Objective diameter18 mm
Tube diameter31 mm
Magnification1×
Field of view51 ft @ 100 yd
Resolution64‑72 Ip/mm, A‑grade
GenerationGen 3 Auto‑Gated White Phosphor
Battery typeCR123A
Battery life300 hrs
Weight580 gr
FinishMatte
WaterproofTrue
Optic coatingAnti‑Reflection
Reticle typeOther
Focus range25 yd to Infinity
Diopter adjustment-5 to +5
Infrared illuminatorYes

What’s included

  • 1 × ATN PS31‑3 HFW Night Vision Goggles
  • Instruction manual
  • Lens cleaning tissue
  • Soft carrying case
  • Helmet mount
  • One CR123A battery

Good to know

  • The included CR123A battery provides up to 300 hours of operation, but spare batteries are recommended for extended missions.
  • Waterproof sealing protects the device from rain, but avoid submerging the goggles for prolonged periods.
  • Diopter adjustment of -5 to +5 allows you to fine‑tune focus for individual eyesight or for use with prescription glasses.
View AllClose

Additional Information

Battery Life:
300
Brand:
ATN
Field of View:
51 ft@100yd
Maximum Magnification:
1
Minimum Magnification:
1
Model:
PS31-3HFW
Objective:
18 mm
Series:
HFW
Tube Diameter:
31 mm
GTIN / UPC:
658175124535
Optic Coating:
Anti-Reflection
Overall Length:
112.000 mm
Product Weight:
580.0000 gr
Optics Type:
Night Vision / Thermal
Battery Type:
CR123A
Finish:
Matte
Reticle Type:
Other
Waterproof:
True
Color:
Matte Black
Package Quantity:
1
Packaging Type:
EA
