ATN

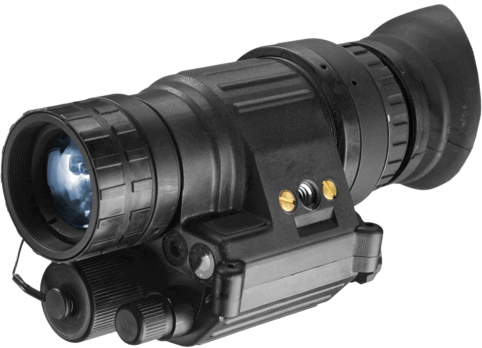

ATN NVMPPVS143W PVS14-3W NV MONO G3 USA WHT
- SKU:
- NVMPPVS143W
- UPC:
- 658175115243
- MPN:
- NVMPPVS143W
- Width:
- 6.40 (in)
- Height:
- 6.10 (in)
- Depth:
- 12.70 (in)
Description
The PVS‑14’s auto‑gated Gen 3 tube is the heart of the system – it automatically adjusts gain to handle sudden light spikes, keeping the image clean when you move from dark shadows into brighter areas. Pair that with a white‑phosphor screen and you get a bright, high‑contrast picture that feels more like daylight, which is easier on the eyes during long night operations. A 27 mm objective lens and 1× magnification give you a generous 40° field of view, so you can sweep terrain quickly without missing a detail. The built‑in IR illuminator adds invisible light for true black‑out scenarios, letting the monocular work even when there’s no ambient light at all. Power comes from a single AA battery that can last up to 50 hours, meaning you can pack light and stay out longer. The unit is rugged enough for helmet mounting, weapon‑behind‑optic mounting, or simple handheld use – the same device the U.S. military trusts for night‑vision tasks.
Key features
- Gen 3 Auto‑Gated IIT – The auto‑gated image intensifier tube boosts performance in rapidly changing light, preventing bloom and preserving detail.
- White Phosphor Screen – Provides a clearer, more natural image with higher contrast than traditional green phosphor, easing eye fatigue.
- 1× Magnification, 40° FOV – Wide field of view lets you maintain situational awareness while scanning terrain or moving targets.
- 27 mm Objective Lens – Large objective gathers more light, improving image brightness and resolution in very low‑light conditions.
- Up to 50‑Hour Battery Life – Runs on a single 1.5 V AA cell, so you can stay in the field for extended missions without swapping batteries.
- Integrated IR Illuminator – Adds invisible infrared illumination for true black‑out environments, extending usable range.
Specifications
| Brand | ATN |
| Product name | PVS14-3W Night Vision Monocular |
| Model / MPN | NVMPPVS143W |
| UPC | 658175115243 |
| Generation | Gen 3 |
| Auto‑Gated | Yes |
| Image Intensifier Tube Type | White Phosphor |
| Magnification | 1× |
| Field of View | 40° |
| Resolution | 64‑72 lp/mm (A‑Grade) |
| Objective Lens Diameter | 27 mm |
| Dimensions (L×W×H) | 4.5" × 2" × 2.25" |
| Battery Type | 1 × AA 1.5 V |
| Battery Life | Up to 50 hours |
| Integrated IR Illuminator | Yes |
| IR Indicator | Yes |
| Low Battery Indicator | Yes |
| Manual Brightness Control | Yes |
| Auto Shut‑Off | Yes |
What’s included
- 1 × ATN PVS14-3W Night Vision Monocular
- 1 × AA 1.5 V battery
- Owner’s Manual
Good to know
- The monocular is compatible with standard helmet mounts and weapon‑behind‑optic rails; verify your mounting hardware before purchase.
- White‑phosphor screens provide a more natural image but may appear brighter than green‑phosphor units; adjust brightness as needed to avoid eye strain.
- Battery life varies with usage of the IR illuminator and ambient temperature; keep spare AA batteries on hand for extended missions.
Additional Information
Brand: |
ATN |
Field of View: |
51 ft@100yd |
Maximum Magnification: |
1 |
Minimum Magnification: |
1 |
Model: |
NVMPPVS143W |
Objective: |
27 mm |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Fixed (None) |
Tube Diameter: |
5.1 cm |
GTIN / UPC: |
658175115243 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
AA |
Finish: |
Black |
Reticle Type: |
Other |
Waterproof: |
True |
Package Quantity: |
1 |
Packaging Type: |
EA |
