ATN

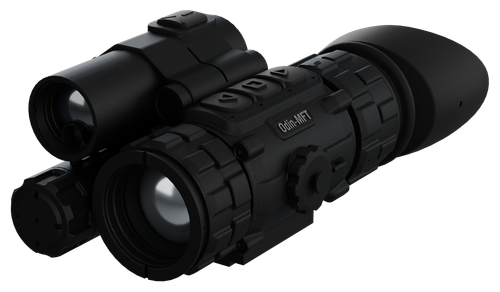

ATN TIMFOD6625LRF ODIN 6 MFT 640 LRF
- SKU:
- TIMFOD6625LRF
- UPC:
- 658175877653
- MPN:
- TIMFOD6625LRF
- Width:
- 8.50 (in)
- Height:
- 5.50 (in)
- Depth:
- 10.90 (in)
Description
The Odin 6 MFT LRF pairs a 12 µm VOx uncooled focal‑plane array with a ≤15 mK NETD rating, giving you razor‑sharp thermal imagery that cuts through clutter and low‑light conditions. Its 640×480 sensor and 50 Hz refresh rate keep the picture smooth and detailed, whether you’re tracking game at dawn or scanning a tactical scene in smoke.
A built‑in 905 nm Class 1 laser rangefinder extends out to 1,000 m, feeding distance data straight to the reticle. Combine that with the integrated ballistic calculator and seven selectable reticle styles, and you have a one‑stop sighting solution for 5.56 mm, 7.62 mm and a host of other calibers without ever having to pause and re‑zero.
The 0.88‑lb unit mounts to a Picatinny rail or Wilcox NVG shoe, and its IP67‑rated magnesium‑alloy chassis survives the elements. With 64 GB of internal storage, video capture, dual‑battery flexibility and a 0.37‑in OLED screen (1280×1024), the Odin 6 is built for hunters, tactical operators and anyone who needs reliable thermal vision and range‑finding in a single, rugged package.
Key features
- 640×480 thermal sensor – Delivers high‑resolution imagery and fine detail at up to 50 Hz refresh, letting you spot heat signatures at long range.
- Built‑in laser rangefinder – Measures distance to 1,000 m with ±1 m accuracy, so you can range targets without a separate device.
- 1‑8× magnification with digital zoom – Smooth 1×, 2×, 4×, 8× digital zoom lets you quickly adapt the field of view for close‑quarters or long‑range work.
- 1280×1024 OLED display – Large, high‑contrast micro‑display shows thermal imagery and reticles clearly even in bright daylight.
- 64 GB internal storage & video capture – Record video and audio on‑the‑fly; footage is stored on the built‑in SSD for later review.
- IP67‑rated magnesium‑alloy housing – Rugged, waterproof construction survives rain, mud and rough handling without compromising performance.
- Multiple reticle styles & ballistic calculator – Seven reticle presets plus a custom ballistic calculator let you zero for 5.56 mm, 7.62 mm and other calibers on the fly.
- Dual‑battery compatibility – Runs on either a 18650 rechargeable or a CR123A cell, delivering 8+ hours of operation on the larger battery.
Specifications
| Brand | ATN |
| Product name | Odin 6 MFT LRF Thermal Monocular |
| Model / MPN | TIMFOD6625LRF |
| UPC | 658175877653 |
| Finish | Black |
| Weight | 0.88 lb (400 g) |
| Dimensions (L×W×H) | 100×75×60 mm |
| Sensor resolution | 640×480 |
| Thermal sensitivity (NETD) | ≤15 mK |
| Refresh rate | 50 Hz |
| Magnification | 1‑8× (digital zoom 1×, 2×, 4×, 8×) |
| Field of view | 17.5° × 13.2° |
| Detection range | Up to 1,700 m |
| Laser rangefinder range | 0‑1,000 m |
| LRF accuracy | ±1 m |
| Laser wavelength | 905 nm Class 1 (eye‑safe) |
| Display type | 0.37 in OLED |
| Display resolution | 1280×1024 |
| Reticle styles | 7 selectable |
| Internal storage | 64 GB |
| Battery compatibility | 1 × 18650 rechargeable or 1 × CR123A |
| Battery life | ≈8 h (18650) / ≈1 h (CR123A) |
| Operating temperature | ‑46 °C to +49 °C |
| Water resistance | IP67 |
| Construction material | Magnesium alloy |
| Mounting interface | Picatinny (MIL‑STD‑1913) rail, Wilcox NVG shoe |
What’s included
- 1 × ATN Odin 6 MFT LRF thermal monocular (black)
- User manual
- Mounting hardware (Picatinny rail adapter)
Good to know
- The unit weighs 0.88 lb without batteries; adding a 18650 cell will bring the total to just under 1 lb.
- Dual‑battery design means you can swap to a CR123A for a lightweight backup, but expect much shorter run‑time.
- The built‑in LRF is eye‑safe (Class 1) and works up to 1,000 m; beyond that distance you’ll need to estimate range manually.
Additional Information
Brand: |
ATN |
Field of View: |
17.5 ft@100yd |
Maximum Magnification: |
8 |
Minimum Magnification: |
1 |
Model: |
Odin 6 MFT |
Objective: |
25 mm |
Parallax Adjustment: |
Fixed (None) |
Series: |
640 LRF |
Tube Diameter: |
25 mm |
GTIN / UPC: |
658175877653 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
Other |
Finish: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Illuminated |
Waterproof: |
True |
