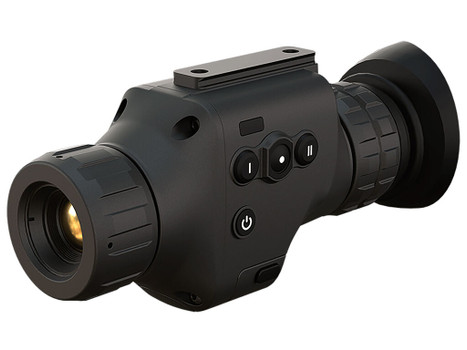

ATN TIMNODN625X ODIN LT 640 Thermal Hand Held/Mountable Scope, Black 2-8x25mm Multi Reticle, 640x480 Resolution
- SKU:
- TIMNODN625X
- UPC:
- 658175123729
- MPN:
- TIMNODN625X
Description
The ODIN LT 640 packs a 640×480 thermal sensor into a handheld‑size monocular, delivering the kind of detection range (≈1,250 yd) you’d expect from a larger system. Its 25 mm objective and 2‑8× variable magnification give a generous field of view while still letting you zero in on distant heat signatures. The 12 µm pixel detector and 60 fps frame rate keep images clear and fluid, even when tracking fast‑moving subjects.
Weighing only 285 g and measuring 5.16 × 2.8 × 1.81 in, the unit balances comfortably in one hand or on a helmet mount. The 25 mm eye‑relief works with glasses or the supplied eye‑cup, and the rugged, weather‑resistant housing survives rain, dust and temperatures from –20 °F up to +120 °F. Power comes from a single CR123A cell (≈2.5 hrs) with an optional rechargeable pack that pushes runtime to about five hours, plus USB‑C charging for field convenience.
Key features
- 25 mm objective lens – Provides a wide field of view (17.6 × 13.2°) while keeping the unit small enough for handheld or helmet mounting.
- 2‑8× variable magnification – Lets you dial in the perfect zoom for close‑range detail or longer‑range detection without changing optics.
- 640×480 @ 60 fps sensor – Delivers crisp thermal imagery and smooth motion tracking, essential for fast‑moving targets.
- 12 µm detector pixel size – Improves sensitivity, extending detection range to roughly 1,250 yd in optimal conditions.
- 25 mm eye relief – Comfortable viewing for users wearing glasses or eye‑cups, reducing eye strain on prolonged observation.
- Weather‑resistant (IP rating) housing – Rugged construction lets you operate in rain, dust, and extreme temperatures from –20 °F to +120 °F.
- CR123A battery (2.5 hr) + optional rechargeable pack – Offers quick swap capability; the rechargeable option extends runtime to about 5 hours for longer missions.
- 5‑year warranty – Factory‑backed coverage gives confidence in the durability of the optics and electronics.
Specifications
| Brand | ATN |
| Product name | ODIN LT 640 Thermal Monocular |
| Model / MPN | TIMNODN625X |
| UPC | 658175123729 |
| Lens size | 25 mm |
| Resolution | 640×480 @ 60 fps, 12 µm pixel |
| Magnification | 2‑8× variable |
| Field of view | 17.6° × 13.2° |
| Eye relief | 25 mm |
| Dimensions | 5.16 × 2.8 × 1.81 in (131 × 71 × 46 mm) |
| Weight | 285 g |
| Battery type | 1 × CR123A (Li‑ion) |
| Battery life (Li‑ion) | 2.5 hrs |
| Optional rechargeable battery runtime | ≈5 hrs |
| Charging method | USB‑C (via optional rechargeable pack) |
| Operating temperature | ‑20 °F to +120 °F (‑28 °C to 48 °C) |
| Detection range | ≈1,250 yd |
| Waterproof / IP rating | Weather‑resistant |
| Color modes | White Hot, Black Hot |
| Warranty | 5 years |
| Country of origin | USA |
| Included accessories | Soft carry bag, battery, eye cup, manual, lens cloth |
What’s included
- 1 × ATN ODIN LT 640 Thermal Monocular
- Battery (CR123A)
- Soft carry bag
- Eye cup
- Owner manual
- Lens cleaning cloth
Good to know
- The monocular can be helmet‑mounted or used handheld; the included eye cup improves comfort for extended observation periods.
- Optional rechargeable battery extends runtime to about five hours and charges via USB‑C, but the standard CR123A cell provides quick field replacement.
- The unit’s weather‑resistant housing meets IP standards for rain and dust, but it is not fully submersible; avoid prolonged immersion.
Additional Information
Battery Life: |
2 |
Brand: |
ATN |
Eye Relief: |
25 mm |
Field of View: |
17.6 ft@100yd |
Maximum Magnification: |
8 |
Minimum Magnification: |
2 |
Model: |
ODIN LT |
Objective: |
25 mm |
Overall Length: |
131.000 mm |
Product Weight: |
285.0000 gr |
Series: |
640 |
Tube Diameter: |
25 mm |
GTIN / UPC: |
658175123729 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
CR123A |
Finish: |
Black |
Reticle Type: |
Illuminated |
Waterproof: |
True |
Color: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
