ATN

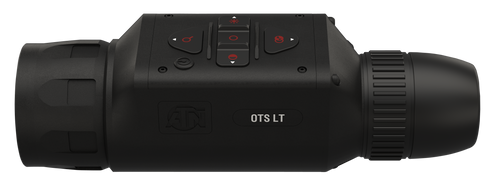

ATN TIMNOLT350X OTS LT 320 Thermal Monocular Black 6-12x 35mm 320x240 Resolution
- SKU:
- TIMNOLT350X
- UPC:
- 658175116677
- MPN:
- TIMNOLT350X
- Width:
- 4.30 (in)
- Height:
- 3.20 (in)
- Depth:
- 10.10 (in)
Description
The OTS LT 320’s 35 mm objective feeds a 320×240 pixel, 12 µm pitch sensor that runs at 60 Hz, delivering sharp thermal images even at the top of its 12× magnification range. The built‑in 1280×960 HD micro‑display presents those images with excellent clarity, while the 4.5° × 3° field of view keeps the picture wide enough for effective scanning.
Battery management is handled by a Li‑ion pack that lasts more than nine hours of continuous use and recharges via a standard USB‑C port—no need for disposable cells. The monocular’s rugged black housing is weather‑resistant, rated for operation from –20 °F to +120 °F, so it can survive rain, dust, and temperature extremes on the field.
With a detection range of up to 1,700 yd, the OTS LT 320 gives you the reach to spot heat signatures well before they become a threat. Backed by a three‑year warranty and built in the USA, this compact thermal viewer is ready for any tactical or hunting scenario where quick, reliable thermal imaging is essential.
Key features
- 320×240 px 12 µm 60 Hz Sensor – Delivers clear, high‑definition thermal imagery that holds detail at the maximum 12× zoom.
- 6‑12× Variable Magnification – Quickly dial in the right zoom for close‑quarters or long‑range detection without changing optics.
- 4.5° × 3° Field of View – Wide enough to maintain situational awareness while still providing enough detail for target identification.
- 9+ Hour Battery Life (Li‑ion) – Extended runtime lets you stay on the hunt or in a tactical scenario without swapping batteries.
- USB‑C Charging – Fast, universal charging eliminates the need for proprietary chargers.
- Weather‑Resistant Construction – Sealed housing protects the monocular from rain and dust, suitable for harsh environments.
- 1700 yd Detection Range – Thermal sensor can pick up heat signatures at long distances, giving you early warning.
- 3‑Year Warranty – Factory‑backed coverage provides confidence in durability and performance.
Specifications
| Brand | ATN |
| Product name | OTS LT 320 Thermal Monocular |
| Model / MPN | TIMNOLT350X |
| UPC | 658175116677 |
| Objective | 35 mm |
| Tube Diameter | 35 mm |
| Sensor Resolution | 320×240 px |
| Sensor Pixel Pitch | 12 µm |
| Sensor Frame Rate | 60 Hz |
| Magnification | 6‑12× |
| Field of View | 4.5° × 3° |
| Micro Display | 1280×960 HD |
| Eye Relief | 19 mm |
| Battery Life | 9+ hours (Li‑ion) |
| Charging Port | USB‑C |
| Operating Temperature | ‑20 °F to +120 °F (‑28 °C to 48 °C) |
| Detection Range | 1,700 yd |
| Waterproof Rating | Weather resistant |
| Dimensions (L×W×H) | 195 × 75 × 66 mm |
| Weight | 1.2 lb / 560 g |
| Color | Black |
| Reticle Type | Other |
| Warranty | 3 years |
| Country of Origin | USA |
What’s included
- 1 × ATN OTS LT 320 Thermal Monocular (black)
- USB‑C charging cable
- Owner’s manual
Good to know
- Battery is internal; no removable packs – keep the unit charged before field use.
- The monocular operates from –20 °F to +120 °F, so performance is reliable in extreme cold or heat.
- Detection range is rated to 1,700 yd; actual range may vary with target size and environmental conditions.
- Three‑year warranty covers defects in materials and workmanship, but does not extend to accidental damage.
- Weight of 560 g makes the unit easy to carry handheld or mount on a helmet with compatible adapters (adapter not included).
Additional Information
Battery Life: |
9+ hrs |
Field of View: |
4.50 x 3 Degrees |
Objective: |
35 mm |
Brand: |
ATN |
Maximum Magnification: |
12 |
Minimum Magnification: |
6 |
Model: |
OTS LT |
Series: |
320 |
Tube Diameter: |
35 mm |
GTIN / UPC: |
658175116677 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
Other |
Finish: |
Black |
Reticle Type: |
Other |
Color: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
