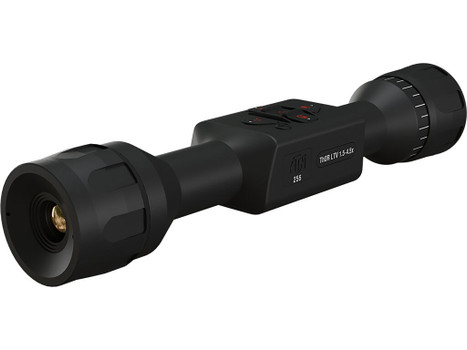

ATN TIWSTLTV212X Thor LTV Thermal Black 1.5-4.5x12mm Multi Reticle 256x192, 12 Microns, 50 Hz Resolution

(No reviews yet) Write a Review
SKU:
TIWSTLTV212X
UPC:
658175124610
MPN:
TIWSTLTV212X
MSRP: $995.00
$879.00
— You save $116.00

Description

The Thor LTV packs ATN’s 6th‑generation thermal engine into an ultra‑light package, delivering a crisp 256×192 image on a 12 µm pixel sensor. With a 12 mm objective and 1.5‑4.5× magnification, you get both the reach and clarity needed for fast‑moving targets in dim environments.

Its second‑focal‑plane reticle stays true at any zoom, so you can make accurate hold‑overs without re‑zeroing. The 0.5 MOA adjustment clicks give you the fine control needed for precise shot placement, while the fixed‑parallax design eliminates the need for extra focus tweaks.

Built to survive the elements, the scope’s waterproof aluminum housing and standard 30 mm rings let you mount it on most rifles quickly. A 9‑hour battery runtime and included USB‑C cable keep you powered through long days on the range or in the field.

Key features

  • 1.5‑4.5× Variable Magnification – Zooms from close‑range to medium‑range targets without changing optics, letting you stay on target as the distance changes.
  • 256×192 Pixel Resolution – Provides a clear, detailed thermal image on a 12 µm pixel pitch sensor, improving target identification in low‑light conditions.
  • 12 mm Objective Lens – Large aperture gathers more infrared energy, extending detection range and image brightness.
  • 30 mm Standard Mounting Rings – Fits directly onto most Picatinny or rail‑mounted platforms without additional adapters.
  • Second Focal Plane Reticle – Reticle remains consistent across the magnification range, simplifying hold‑overs and range estimation.
  • Waterproof Construction – Sealed aluminum alloy housing protects the scope from rain and splashes, ensuring reliable operation outdoors.
  • 9‑Hour Battery Life – Long‑lasting power lets you stay on the hunt or in a tactical scenario without frequent battery changes.
  • 0.5 MOA Adjustment Increment – Fine windage and elevation tweaks let you dial in precise point‑of‑aim corrections.

Specifications

BrandATN
Product nameATN Thor LTV Thermal 1.5-4.5x12mm Multi Reticle
Model / MPNTIWSTLTV212X
UPC658175124610
Objective lens12.00 mm
Resolution256×192 pixels
Pixel pitch12 µm
Magnification range1.5‑4.5×
Field of view14.2 ft @ 100 yd
Tube diameter30 mm
FinishBlack
WaterproofTrue
Battery life9 hours
Battery typeOther
Adjustment increment0.5 MOA
Parallax adjustmentFixed (None)
Reticle focal planeSecond Focal Plane (SFP)
Weight2.4 lbs

What’s included

  • 1 × ATN Thor LTV Thermal 1.5-4.5x12mm Multi Reticle scope
  • Standard 30 mm mounting rings
  • USBC charging cable
  • Scope cover
  • Lens cleaning tissue
  • Eye cup
  • Flip‑open cap

Good to know

  • Mounts to any platform with standard 30 mm rings; no additional adapters required
  • Second focal plane reticle means the reticle size does not change with magnification
  • Water‑sealed housing allows use in rain or humid conditions
  • Battery is a proprietary 'Other' type; carry a spare or USB‑C charger for extended use
View AllClose

Additional Information

Adjustment Increment:
0.5 moa
Battery Life:
9
Brand:
ATN
Field of View:
14.2 ft@100yd
Maximum Magnification:
4.5
Minimum Magnification:
1.5
Model:
Thor LTV
Objective:
12 mm
Parallax Adjustment:
Fixed (None)
Reticle Focal Plane:
Second Focal Plane (SFP)
Tube Diameter:
30 mm
GTIN / UPC:
658175124610
Optics Type:
Night Vision / Thermal
Battery Type:
Other
Finish:
Black
Reticle Type:
Other
Waterproof:
True
Color:
Black
Package Quantity:
1
Packaging Type:
EA
