BSA

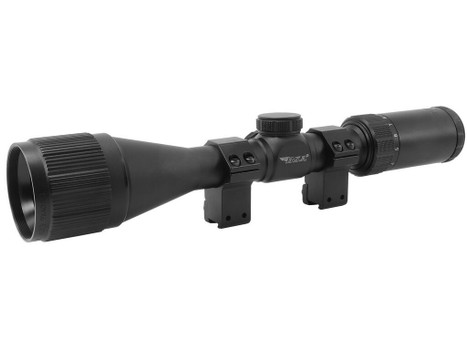

BSA AIR39X40AO Outlook Matte Black 3-9x40mm AO 1" Tube Mil-Dot Reticle
- SKU:
- AIR39X40AO
- UPC:
- 793676090863
- MPN:
- AIR39X40AO
- Width:
- 13.45 (in)
- Height:
- 2.80 (in)
- Depth:
- 6.45 (in)
Description
The adjustable‑objective (AO) design lets you dial in parallax from 10 yards all the way to infinity, a feature rarely seen on air‑rifle scopes. Pair that with a 40 mm fully multi‑coated objective and you get a bright, high‑contrast image even when the sun is low or the target is at the edge of the field.
Because the Mil‑Dot reticle sits on a second focal plane, the reticle’s subtensions stay the same at every magnification. Whether you’re shooting a quick 3× run‑out or a precise 9× hold‑over, the hold‑over values you dial in stay true.
The scope’s 1‑inch tube, matte black finish, and 3.7‑inch eye relief make it a perfect match for high‑recoil air rifles with reverse‑recoil mechanisms. The included two‑piece dovetail rings mount cleanly to standard rails, so you’re ready to go after a quick tighten.
Key features
- 3‑9x Magnification Range – Provides low‑power 3× for quick target acquisition and high‑power 9× for precise shots out to 200 yd.
- 40 mm Objective Lens – Large objective gathers more light, giving a clear picture even in low‑light conditions.
- Fully Multi‑Coated Optics – All lens surfaces receive multi‑coat treatment to reduce glare and improve transmission.
- Adjustable Objective Parallax – Parallax can be dialed from 10 yd to infinity, ensuring a true sight picture at any distance.
- 25 MOA per Click – Each click moves the elevation or windage 0.25 MOA, allowing fine, repeatable adjustments.
- 3.7‑in Eye Relief – Generous eye relief prevents eye‑strike on high‑recoil air rifles while maintaining a comfortable shooting stance.
- Second Focal Plane Mil‑Dot Reticle – Reticle size stays constant regardless of magnification, making hold‑overs consistent from 3× to 9×.
- Matte Black Finish – Non‑reflective finish reduces glare and blends with most air‑rifle mounts.
- 1‑in Tube Diameter – Standard 1" tube fits common Picatinny or rail mounts without additional adapters.
- 2‑Piece Dovetail Rings Included – Comes with a set of dovetail rings for quick installation on compatible mounts.
Specifications
| Brand | BSA |
| Product name | Outlook 3-9x40mm AO 1" Tube Mil-Dot Scope |
| Model / MPN | AIR39X40AO |
| UPC | 793676090863 |
| Magnification range | 3-9x |
| Maximum magnification | 9 |
| Minimum magnification | 3 |
| Objective diameter | 40 mm |
| Tube diameter | 1 in |
| Reticle type | Mil‑Dot (Second Focal Plane) |
| Adjustment increment | 25 MOA per click |
| Eye relief | 3.7 in |
| Parallax adjustment | Adjustable objective (AO) |
| Optic coating | Fully Multi‑Coated |
| Finish | Matte Black |
| Weight | 1.650 lb |
| Included accessories | 2‑piece dovetail rings |
What’s included
- 1 × BSA Outlook 3‑9x40mm AO Mil‑Dot Scope
- 2 × Dovetail mounting rings
Good to know
- Designed specifically for air rifles with reverse‑recoil systems; the AO helps eliminate parallax error at close ranges.
- Second focal plane reticle means hold‑over values stay consistent across the 3‑9x magnification range.
- Fully multi‑coated lenses and a 40 mm objective provide a bright picture even in dim lighting.
- The matte finish reduces reflections and helps keep the scope low‑profile on the rifle.
Additional Information
Adjustment Increment: |
25 moa |
Brand: |
BSA |
Eye Relief: |
3.7 in |
Field of View: |
34.5 ft@100yd |
Maximum Magnification: |
9 |
Minimum Magnification: |
3 |
Model: |
Outlook |
Objective: |
40 mm |
Optic Coating: |
Fully Multi-Coated |
Series: |
Air Rifle |
Tube Diameter: |
1 in |
GTIN / UPC: |
793676090863 |
Overall Length: |
11.750 in |
Parallax Adjustment: |
Adjustable (Objective) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Optics Type: |
Riflescope |
Color: |
Matte Black |
Finish: |
Matte |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Other |
Waterproof: |
False |
