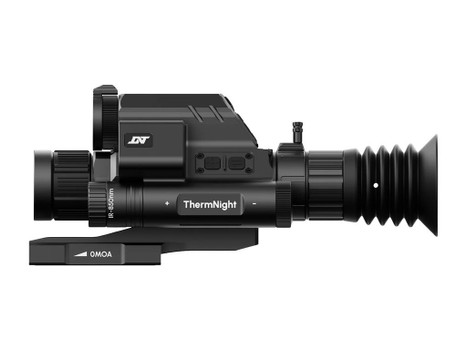

DNT OPTICS
DNT TNC635R THERMNIGHT 1.5-6X
- SKU:
- TNC635R
- UPC:
- 850065096117
- MPN:
- TNC635R
- Width:
- 9.80 (in)
- Height:
- 4.60 (in)
- Depth:
- 11.80 (in)
Description
The ThermNight TNC635R merges a high‑resolution thermal imager with a full‑color digital sensor, giving you two complementary views of the same scene. The thermal channel’s 640×512 VOx sensor and 1.5× base magnification let you sweep large areas for heat signatures, while the digital channel’s 5× base (up to 20× digital) lets you lock onto the target for precise identification. A built‑in 850/940 nm laser rangefinder measures distances from 5 to 1,200 yards, feeding that data straight into DNT’s onboard ballistic engine. Load up to five ballistic profiles, and the scope will automatically display hold‑over or dial‑in adjustments, cutting the guesswork out of long‑range shots. Designed for rugged field use, the TNC635R is IP67 sealed and can survive the recoil of .50 BMG rifles. At 9 inches long and 25.6 oz, it balances well on most AR‑style platforms, though the weight can feel top‑heavy on lighter builds. The removable flat‑top 21700 battery provides roughly 5.5 hours of run time, and two batteries ship with the unit. Beyond hunting, the scope records video and audio, stores up to five ballistic profiles, and offers an adjustable IR illuminator for night‑time clarity. Whether you’re hunting at dusk or engaging a target at 600 yd, the TNC635R gives you the data and image quality to make the shot count.
Key features
- 640×512 thermal sensor – Delivers high‑resolution heat imaging with a 12 µm pixel pitch and ≤18 mK NETD, giving crisp target detection out to 600 yd.
- 1080p digital day/night channel – Provides a 5× base magnification and up to 20× digital zoom for clear visual identification in low‑light or daylight.
- 1.5‑6× combined magnification – Base 1.5× thermal view for wide scanning, then 5× digital zoom for precise aiming, all within the same optic.
- Laser rangefinder 5–1,200 yd – Integrated 850/940 nm eye‑safe rangefinder supplies distance data directly to the onboard ballistic engine.
- Integrated ballistic calculator – Enter ballistic profiles once; the scope instantly displays hold‑over or dial‑in corrections after ranging.
- IP67 waterproof & shock‑rated – Sealed to withstand rain, dust and recoil up to .50 BMG, ensuring reliable operation in extreme environments.
- Removable 21700 battery (≈5.5 h) – Flat‑top 21700 cell gives several hours of operation; two batteries are supplied for immediate use.
- Eight reticle styles, five colors – Select from multiple reticle options to match shooting preferences and lighting conditions.
Specifications
| Brand | DNT Optics |
| Product name | ThermNight TNC635R Multispectral Scope |
| Model / MPN | TNC635R |
| UPC | 850065096117 |
| Thermal sensor | 640×512 uncooled VOx, 12 µm pixel pitch |
| Thermal sensitivity (NETD) | ≤18 mK at 25 °C |
| Digital sensor | 1920×1080 Ultra‑Sensitive Low‑Light CMOS |
| Objective lens diameter | 35 mm |
| Base magnification (thermal) | 1.5× |
| Digital magnification | 5× base, up to 20× digital zoom |
| Field of view | 12.52° × 10.02° |
| Laser rangefinder range | 5–1,200 yd |
| Ballistic calculator | Integrated DNT Ballistic Engine, up to 5 profiles |
| Reticle options | 8 styles, 5 colors |
| Battery type | Removable flat‑top 21700 (≈5.5 h), two supplied |
| Weight | 724 g / 25.6 oz |
| Protection rating | IP67 |
| Eye‑safe class | Class 3R (850/940 nm) |
What’s included
- 1 × DNT Optics ThermNight TNC635R Multispectral Scope
- 2 × 21700 flat‑top batteries
- Owner’s manual
- Mounting hardware (ring and base)
Good to know
- The scope’s 9‑inch length and 25.6 oz weight are optimized for AR‑style rifles; lighter platforms may feel top‑heavy.
- IR illumination can be switched between focused and wide modes to improve night‑time image contrast.
- Battery life is rated at ~5.5 hours; carry spare 21700 cells for extended outings.
Additional Information
Brand: |
DNT Optics |
Field of View: |
12.52 ft@100yd |
Maximum Magnification: |
6 |
Minimum Magnification: |
1.5 |
Model: |
TNC635R |
Objective: |
35 mm |
GTIN / UPC: |
850065096117 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
Other |
Finish: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
Waterproof: |
True |
