HAWKE SPORT OPTICS

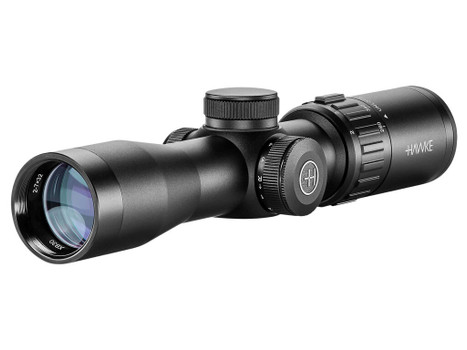

HAWKE 12224 XB30 2-7X32 IR WA COMPACT SR
- SKU:
- P-30362F363FAC05FE2
- UPC:
- 5054492122240
- MPN:
- 12224
Description
The XB30 SR’s 30 mm tube and low‑profile turrets slip onto most crossbow rails, keeping the rig lightweight and unobtrusive. Its 2‑7× magnification paired with a 32 mm objective delivers a bright field of view—53.8 ft at 100 yds at 2× down to 17.4 ft at 7×—so you can track fast‑moving game without hunting‑blind tunnel vision.
Illumination is handled by a five‑step rheostat offering both red and green LEDs, letting you dial the reticle brightness to match dawn, dusk, or full daylight while preserving night‑vision capability. The SR reticle is calibrated for projectile speeds between 280 fps and 440 fps, giving you accurate hold‑over without external calculators.
Being a second‑focal‑plane design, the reticle size stays constant across the zoom range, making range‑estimation intuitive whether you’re at 2× or 7×. With a 4‑inch (102 mm) eye relief and a 1/2 MOA click, fine adjustments are smooth and repeatable, ideal for precision shooting on the field.
Key features
- 30 mm tube – Standard 30 mm tube fits the majority of crossbow mounts without additional adapters.
- 2‑7× magnification – Wide zoom range lets you acquire targets at close range and maintain precision at longer distances.
- 32 mm objective lens – Provides a bright, clear image even in low‑light hunting conditions.
- 1/2 MOA click value – Fine adjustment lets you dial in precise windage and elevation changes.
- 5 illumination levels (red & green) – Stepped rheostat lets you quickly match brightness to ambient light, preserving night vision.
- Second focal plane (SFP) reticle – Reticle size stays constant regardless of magnification, simplifying range‑estimation.
- Fully multi‑coated optics – Reduces glare and maximizes light transmission for crisp images.
- 4‑inch eye relief – Generous eye relief reduces eye strain and prevents accidental contact with the scope.
Specifications
| Brand | Hawke Sport Optics |
| Product name | XB30 2-7x32 SR |
| Model / MPN | 12224 |
| UPC | 5054492122240 |
| Scope tube diameter | 30 mm |
| Magnification | 2‑7× |
| Objective lens diameter | 32 mm |
| Reticle | XB30 SR |
| Illumination levels | 5 (Red & Green) |
| Illumination control | Stepped rheostat |
| Focal plane | Second focal plane (SFP) |
| Lens coating | Fully multi‑coated |
| Eye relief | 4 in (102 mm) |
| Click value | 1/2 MOA |
| Length (overall) | 9.4 in |
| Field of view @100 yds | 53.8‑17.4 ft |
| Exit pupil | 0.63‑0.18 in |
| Turret type (Elevation) | Capped, low‑profile, resettable |
| Elevation turret clicks (max) | 215 MOA |
| Turret type (Windage) | Capped, low‑profile, resettable |
| Windage turret clicks (max) | 195 MOA |
| Power selector | Locking speed adjuster |
| Calibration speed range | 280‑440 fps |
What’s included
- 1 × Hawke XB30 2‑7x32 SR crossbow scope
- Mounting hardware (screws & washers)
- User manual
Good to know
- Designed for crossbow platforms; verify your rail pattern before purchase.
- Battery required: CR2032 (not included).
- Scope length is 9.4 in; ensure sufficient clearance on your crossbow’s rail.
- Reticle calibrated for 280‑440 fps; outside this range may require external hold‑over adjustments.
Additional Information
Adjustment Increment: |
0.5 moa |
Brand: |
Hawke Sport Optics |
Eye Relief: |
90 mm |
Maximum Magnification: |
7 |
Minimum Magnification: |
2 |
Model: |
12224 |
Objective: |
32 mm |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Tube Diameter: |
1 in |
GTIN / UPC: |
5054492122240 |
Optics Type: |
Riflescope |
Finish: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Illuminated |
Waterproof: |
True |
