HAWKE SPORT OPTICS

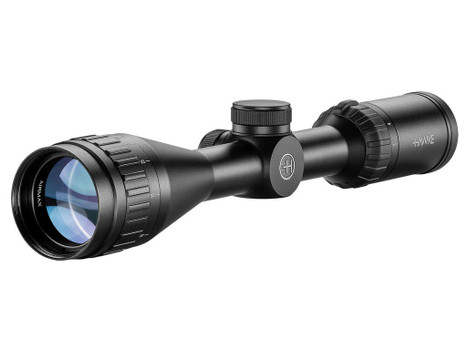

Hawke Sport Optics 13110 Airmax Riflescope Black 3-9x40mm 1" Tube AMX Reticle
- SKU:
- 13110
- UPC:
- 5054492131105
- MPN:
- 13110
- Width:
- 8.70 (in)
- Height:
- 3.20 (in)
- Depth:
- 16.10 (in)
Description
The Airmax’s 1‑inch tube houses a 40 mm objective and a second‑focal‑plane (SFP) optical system, meaning the reticle stays true at every magnification. That consistency pairs perfectly with the AMX reticle, whose mil‑spaced bars give you a range of aiming points without having to guess hold‑over.
Parallax is adjustable via the objective, so you can set the focus exactly to your eye’s position. Combined with 3.5 in (90 mm) eye relief, the scope stays comfortable even with larger‑eye‑relief mounts or when shooting from a cheek‑rest.
Turrets are low‑profile, capped and rubber‑coated for a secure grip. Each click moves 1/4 MOA, giving you fine control for windage and elevation while keeping the profile slim enough for most airgun rails.
Key features
- 3‑9× Variable Magnification – Zooms from close‑range 3× out to 9× for longer shots, letting you dial in the perfect power without changing optics.
- 40 mm Objective Lens – Large front element gathers more light, delivering a bright image even in low‑light airgun environments.
- Fully Multi‑Coated 16‑Layer Optics – Reduces flare and maximizes transmission so the target stays clear and contrast‑rich at all powers.
- Adjustable Objective Parallax – Fine‑tune focus for the shooter’s eye position, eliminating ghost images and improving accuracy at distance.
- 1/4 MOA Click Turrets – Both elevation and windage turrets move in precise 0.25 MOA increments, making repeatable adjustments easy.
- AMX Reticle with Mil Spacing – Glass‑etched reticle based on a 10× mil‑dot grid; horizontal bars at 0.5‑4.5 mil provide multiple hold‑over points for loopy airgun trajectories.
Specifications
| Brand | Hawke Sport Optics |
| Product name | Airmax 3‑9×40 AO Riflescope |
| Model / MPN | 13110 |
| UPC | 5054492131105 |
| Magnification | 3‑9× |
| Objective lens diameter | 40 mm |
| Tube size | 1 inch |
| Length | 12.2 in (310 mm) |
| Eye relief | 3.5 in (90 mm) |
| Parallax | Adjustable Objective |
| Reticle | AMX (glass‑etched, mil‑spaced) |
| Optic coating | Fully Multi‑Coated, 16 layers |
| Turret type (Elevation) | Capped, Low‑Profile, Resettable |
| Elevation turret clicks | 80 MOA total, 1/4 MOA per click |
| Turret type (Windage) | Capped, Low‑Profile, Resettable |
| Windage turret clicks | 80 MOA total, 1/4 MOA per click |
| Field of view @ 100 yd | 37.2 ft – 13.6 ft |
| Field of view @ 100 m | 12.4 m – 4.5 m |
| Exit pupil | 0.52 in – 0.17 in |
| Power selector | Rubber‑coated posi‑grip |
| Optical system | H2 |
| Focal plane | Second Focal Plane (SFP) |
What’s included
- 1 × Airmax 3‑9×40 AO Riflescope
Good to know
- Designed for airguns; the mil‑spaced AMX reticle provides extra hold‑over points for the curved trajectories typical of .177/.22 pellets.
- Second‑focal‑plane design means the reticle size stays constant across magnification, simplifying range‑estimation.
- Fully multi‑coated lenses and 1/4 MOA clicks make the scope usable in low‑light conditions and for precise windage/elevation adjustments.
Additional Information
Eye Relief: |
3.50" |
Optic Coating: |
Fully Multi Coated |
Field of View: |
37.20 - 13.60ft @ 100yds |
Tube Diameter: |
1 in |
Objective: |
40 mm |
Parallax Adjustment: |
Adjustable |
Adjustment Increment: |
0.25 moa |
Brand: |
Hawke Sport Optics |
Maximum Magnification: |
9 |
Minimum Magnification: |
3 |
Model: |
Airmax |
Overall Length: |
28.500 cm |
Product Weight: |
518.0000 gr |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Series: |
Riflescope |
GTIN / UPC: |
5054492131105 |
Optics Type: |
Riflescope |
Color: |
Black |
Finish: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Other |
Waterproof: |
True |
