Hornady

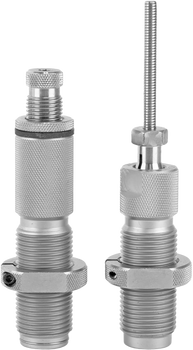

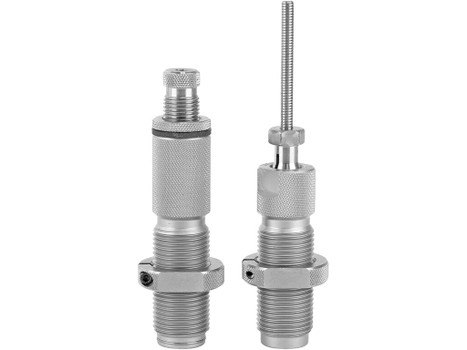

Hornady 545160 Match Grade Die Set 300 WSM
- SKU:
- 545160
- UPC:
- 090255551600
- MPN:
- 545160
- Width:
- 5.10 (in)
- Height:
- 1.90 (in)
- Depth:
- 7.40 (in)
Description
When you’re dialing in 300 WSM loads for match or long‑range shooting, neck tension is the make‑or‑break factor. Hornady’s Match Grade set gives you a bushing‑sizing die that grips the case uniformly, while the free‑floating spindle keeps the expansion perfectly concentric. The seating die’s Click‑Adjust micrometer moves in .001‑inch increments, so you can set and lock the exact seating depth you need without guesswork.
The set threads onto any standard 7/8‑14 press, including Hornady’s Lock‑N‑Load platforms, and accepts the .001‑inch step neck bushings Hornady sells separately. An elliptical expander and replaceable decap pin retainer ship with the dies, letting you expand and decap cases cleanly right out of the bench. No neck bushing is included – pick the size that matches your brass and bullet for optimal performance.
Key features
- 2‑Die Match Grade Set – Bushing‑sizing die and seating die let you control neck tension without over‑sizing brass.
- Click‑Adjust Micrometer – Seating die moves in .001‑inch clicks, letting you dial in exact seating depth and lock the setting.
- Standard 7/8‑14 Threads – Fits any reloading press with the common 7/8‑14 die thread, including Hornady Lock‑N‑Load presses.
- Interchangeable Neck Bushings – Self‑centering spindle accepts .001‑inch step bushings (sold separately) for fine‑tuned tension.
- Free‑Floating Spindle – Keeps neck expansion concentric, improving consistency shot‑to‑shot.
- Elliptical Expander & Decap Pin Retainer Included – Comes with both accessories to ensure reliable case expansion and decapping.
Specifications
| Brand | Hornady |
| Caliber / Gauge | 300 WSM |
| Product name | Match Grade Die Set 300 WSM |
| Model / MPN | 545160 |
| UPC | 090255551600 |
| Dies in set | 2 (bushing sizing die, seating die with Click‑Adjust micrometer) |
| Fits | Reloading presses with standard 7/8‑14 die threads, including Hornady Lock‑N‑Load presses |
| Neck bushing | Sold separately; Hornady .30‑cal bushings .329‑.338 in (594329‑594338) |
| Shell holder compatibility | Hornady No. 35 (390575) – sold separately |
| Included accessories | Elliptical expander, replaceable decap pin retainer |
| Bullet diameter | .308 in |
| Line | Match Grade |
What’s included
- 1 × Bushing‑sizing die
- 1 × Seating die with Click‑Adjust micrometer
- Elliptical expander
- Replaceable decap pin retainer
Good to know
- Neck bushings are not included – purchase the appropriate size separately.
- The set works with any press that uses the common 7/8‑14 die thread, making it interchangeable with most existing setups.
- Use Hornady No. 35 shell holder (sold separately) for optimal case feeding on progressive presses.
Additional Information
Brand: |
Hornady |
Cartridge (SAAMI): |
300 WSM |
Die Type: |
2-Die Set |
Material: |
Steel |
Model: |
Match Grade |
Primary Application: |
Target Match |
Series: |
Die Set |
GTIN / UPC: |
090255551600 |
Packaging Type: |
EA |
Package Quantity: |
1 |
