Hornady

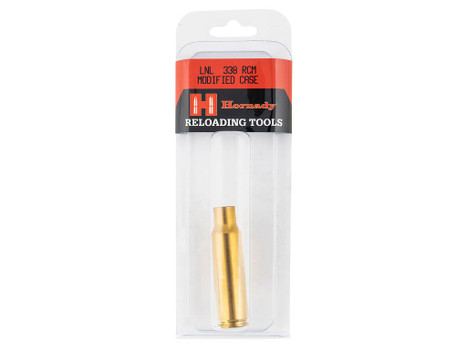

Hornady A338R Lock-N-Load A Series Modified Cases 338RCM
- SKU:
- A338R
- UPC:
- 090255697971
- MPN:
- A338R
Description
When you’re dialing in bullet jump for a .338 Ruger Compact Magnum, the Hornady Lock‑N‑Load modified case gives you a hard reference point right at the chamber. The case head is threaded, so you simply screw it onto Hornady’s O.A.L. Gauge and watch the bullet seat to the rifling, reading the depth to .001 in increments. Because the neck is .002 in oversized, the exact bullet you’ll fire slides in just as it will in a fresh brass, delivering a true‑to‑life measurement rather than a dummy‑shape approximation.
The case is stamped for .338 RCM and conforms to SAAMI specifications, meaning it will seat correctly in any factory‑spec rifle chamber. It works with both the straight (C1000) and curved (C1550) versions of Hornady’s O.A.L. Gauge, so you can use the gauge you already own without needing a separate adapter. Each case is sold individually, intended for one chamber, so you can match the case to the specific rifle you’re tuning for the most precise results.
Key features
- Threaded case head – The head is machined with a thread so you can screw the case onto Hornady’s O.A.L. Gauge and read bullet jump directly in the chamber.
- .002 in oversized neck – The neck is deliberately oversized, allowing the exact bullet you intend to load to move freely and give an accurate measurement.
- Fits both straight and curved O.A.L. Gauges – Compatible with Hornady’s straight (C1000) and curved (C1550) O.A.L. Gauges, so you can use whichever gauge you own without extra adapters.
- Made to SAAMI specs – Hornady manufactures the case to official SAAMI dimensions, ensuring it matches the chamber dimensions of any .338 RCM rifle.
- One‑case‑per‑cartridge design – Each modified case is intended for a single chamber; buy the case that matches the rifle you’re tuning for optimal accuracy.
- Caliber marked .338 RCM – Clearly stamped for .338 Ruger Compact Magnum, eliminating any guesswork when selecting the right case for your reloads.
Specifications
| Brand | Hornady |
| Caliber / Gauge | 338 Ruger Compact Magnum |
| Product name | Lock‑N‑Load Modified Case .338 RCM |
| Model / MPN | A338R |
| UPC | 090255697971 |
| Neck tolerance | .002 in oversized |
| Threaded case head | Yes, for Hornady O.A.L. Gauge |
| Fits | Hornady Lock‑N‑Load O.A.L. Gauge straight (C1000) and curved (C1550) |
| SAAMI specification | Made to SAAMI specs |
What’s included
- 1 × Hornady Lock‑N‑Load Modified Case .338 RCM (A338R)
Good to know
- The O.A.L. Gauge itself is sold separately; this case only provides the threaded interface for measurement.
- Each modified case is intended for a single chamber, so purchase a case that matches the specific rifle you plan to tune.
- The oversized neck allows the exact bullet you’ll fire to slide freely, giving a true reading of bullet jump before it contacts the rifling.
Additional Information
Brand: |
Hornady |
Cartridge (SAAMI): |
338 RCM |
Material: |
Brass |
Model: |
Lock-N-Load |
Series: |
A Series Modified Cases |
GTIN / UPC: |
090255697971 |
Packaging Type: |
EA |
Package Quantity: |
1 |
