Description

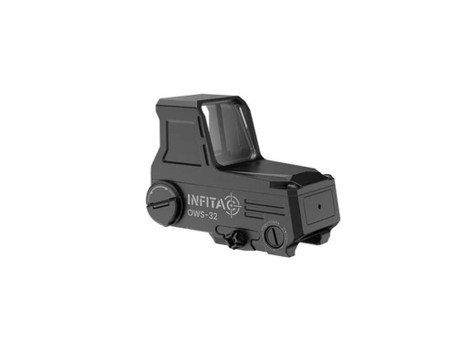

The OWS‑32 uses InfiTac’s proprietary waveguide technology to project a crisp red dot without the bulk of a traditional holographic unit. Its 1.3 mm objective and 5 cm tube diameter keep the sight compact while delivering a clear, parallax‑free picture that stays on target even when your eye moves off‑center. The fixed 1× magnification means you never have to guess how the reticle will behave—what you see is exactly what you shoot. Mounted on a standard Picatinny rail, the sight’s black, multi‑coated housing resists glare and stands up to the rigors of tactical or competition use. With 0.5 MOA click adjustments and a second‑focal‑plane reticle, you can make precise windage and elevation changes without the reticle shifting size. The CR123A power source provides long battery life, and the IP67 rating guarantees reliable operation in rain, mud, or dusty environments. Because the OWS‑32 is a waveguide red‑dot, it pairs well with night‑vision devices and other optics that benefit from a clean, unobstructed sight picture. Its simple, durable design makes it a solid choice for pistols, carbines, and rifles that demand fast, accurate target acquisition without the complexity of variable magnification.
Key features
- Fixed 1× Magnification – Provides a true 1× view with no zoom, keeping the sight picture consistent for rapid target acquisition.
- 0.5 MOA Adjustment Increment – Fine windage and elevation tweaks let you dial in precise point‑of‑aim without overshooting.
- Second Focal Plane (SFP) Reticle – Reticle size stays constant regardless of eye position, making hold‑over calculations straightforward.
- Multi‑Coated Optics – Reduces glare and improves light transmission, especially useful in low‑light or night‑vision‑compatible setups.
- IP67 Waterproof Construction – Sealed against dust and water, the sight can survive rain, splashes, and dusty field conditions.
- CR123A Battery – Long Life – Runs on a common CR123A cell, offering extended service life before replacement is needed.
Specifications
| Brand | InfiTac |
| Product name | OWS-32 Waveguide Red Dot Sight |
| Model / MPN | 8A1-1000-10-A |
| UPC | 850067573166 |
| Optics Type | Red Dot / Reflex |
| Magnification (Min) | 1 |
| Magnification (Max) | 1 |
| Objective size | 1.3 mm |
| Tube diameter | 5 cm |
| Reticle focal plane | Second Focal Plane (SFP) |
| Reticle type | Other |
| Parallax adjustment | Fixed (None) |
| Adjustment increment | 0.5 MOA |
| Optic coating | Multi-Coated |
| Finish | Black |
| Battery type | CR123A |
| Waterproof rating | IP67 |
What’s included
- 1 × InfiTac OWS-32 Waveguide Red Dot Sight
- Owner’s manual
Good to know
- Fits any Picatinny rail (20‑mm spacing).
- Reticle does not change size with eye position, aiding quick shot placement.
- CR123A battery is widely available; replace when the sight dims.
- The sight’s fixed 1× magnification means it cannot be used for long‑range precision work requiring higher zoom.
Additional Information
Adjustment Increment: |
0.5 moa |
Brand: |
Infitac |
Maximum Magnification: |
1 |
Minimum Magnification: |
1 |
Model: |
OWS-32 |
Objective: |
1.3 mm |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Tube Diameter: |
5 cm |
GTIN / UPC: |
850067573166 |
Optics Type: |
Red Dot / Reflex |
Battery Type: |
CR123A |
Finish: |
Black |
Reticle Type: |
Other |
Waterproof: |
True |
Package Quantity: |
1 |
Packaging Type: |
EA |
