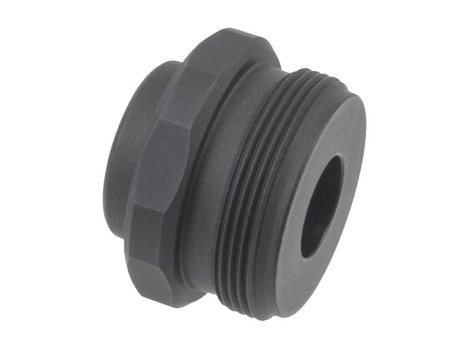

Jk Armament JK105PLTM13 LT CCX Thread Mount Fits M13.5 x 1 LH Aluminum Hard Anodized Black
- SKU:
- JK105PLTM13
- UPC:
- 850017729988
- MPN:
- JK105PLTM13
- Width:
- 3.70 (in)
- Height:
- 1.30 (in)
- Depth:
- 4.00 (in)
Description
When you need a solid, repeatable connection between a threaded barrel and a suppressor, this mount delivers exactly that. The direct‑thread design mates to M13.5×1 LH barrels (the thread used on the JK 105 CCX 9 mm suppressor) and also accepts the ubiquitous 1/2×28 size, so you can swap between common pistol threads without swapping parts.
Made from T6‑7075 billet aluminum, the mount resists the torque of muzzle devices while staying feather‑light at just 0.4 oz. The hard‑anodized black finish not only looks sharp but also protects the alloy from rust and wear, a must‑have for shooters who take their gear into the elements.
Installation is straightforward: the outside flats are machined to a standard 1‑inch SAE dimension, meaning any JK Armament wrench or a regular 1‑in SAE tool will seat the mount securely. Once installed, the mount holds suppressors, brakes, or compensators in perfect alignment, helping you maintain consistent point‑of‑impact and recoil control.
Key features
- Direct M13.5×1 LH thread – Fits barrels threaded M13.5×1 LH, the standard for JK 105 CCX suppressors, delivering precise alignment for optimal muzzle‑device performance.
- Alternative 1/2×28 thread option – Also compatible with 1/2×28 threads, giving flexibility for shooters who use that common pistol thread size.
- T6‑7075 billet aluminum construction – High‑strength aerospace alloy ensures the mount can handle recoil and torque without deformation.
- Hard‑anodized black finish – Provides excellent corrosion resistance and a low‑profile appearance that endures harsh field conditions.
- Lightweight 0.4 oz, 1.05 in diameter – Minimal added weight keeps the firearm’s balance while the compact diameter fits most muzzle‑device housings.
- Standard 1‑inch SAE flats – All outside flats accept the JK Armament wrench or any standard 1 in SAE tool for quick installation or removal.
Specifications
| Brand | JK Armament |
| Product name | JK105PLTM13 LT CCX Thread Mount |
| Model / MPN | JK105PLTM13 |
| UPC | 850017729988 |
| Material | T6‑7075 Billet Aluminum |
| Finish | Hard Anodized Black |
| Thread type | Direct thread mount |
| Primary thread size | M13.5×1 LH |
| Alternative thread size | 1/2×28 |
| Diameter | 1.05 in |
| Weight | 0.4 oz |
| Tools required | Standard 1‑in SAE flats (JK Armament wrench or equivalent) |
What’s included
- 1 × JK105PLTM13 LT CCX Thread Mount
- Owner’s manual (installation guide)
Good to know
- The mount is designed for the JK 105 CCX 9 mm suppressor but will work with any muzzle device that fits the same thread pattern.
- Hard‑anodized finish protects against corrosion, but regular cleaning with mild soap and water will extend its life.
- If your barrel uses a different thread pitch, verify compatibility before purchase; the mount does not convert thread sizes, it only matches the listed sizes.
Additional Information
Model: |
LT CCX |
Brand: |
JK Armament |
Material: |
Aluminum |
Series: |
Thread Mount |
GTIN / UPC: |
850017729988 |
Color: |
Black |
Finish: |
Anodized |
Package Quantity: |
1 |
Packaging Type: |
BOX |
