Konus

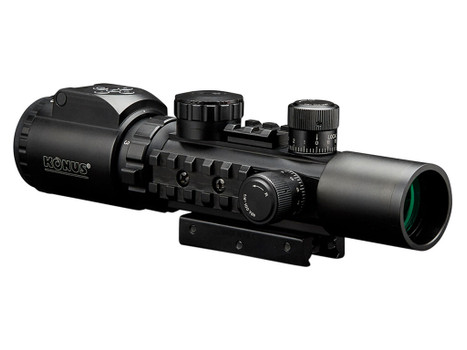

Konus 7170 KonusPro AS-34 Matte Black 2-6x28mm 34mm Tube Dual Illuminated Green/Red Engraved Mil-Dot Reticle Features Bubble Level
- SKU:
- P-68382B876D6C9F716
- UPC:
- 698156071700
- MPN:
- 7170
- Width:
- 10.20 (in)
- Height:
- 2.90 (in)
- Depth:
- 3.60 (in)
Description
The KonusPro AS‑34’s 34 mm matte‑black tube is built to survive the worst conditions—water, fog, shock, and even dry‑nitrogen filling keep the internal elements sealed and zero‑stable. Inside, a fast‑focus ocular paired with fully multi‑coated lenses gives a bright, clear picture from 2× out to 6× magnification, while the 28 mm objective provides a generous eye‑relief of 4.1 in for comfortable shooting with both eyes open.
A dual‑illuminated Mil‑Dot reticle sits in the second focal plane, meaning the reticle stays the same size regardless of zoom. Switch between green and red illumination and select from five brightness levels to match ambient light, then use the 1/4 MOA (25 MOA) click adjustments for precise windage and elevation changes. An integrated illuminated bubble level adds a quick reference for keeping the scope level on the move.
Key features
- 34 mm Matte‑Black Tube – The beefy 34 mm outer diameter resists shock, water and fog, keeping the optics aligned in harsh field conditions.
- 2‑6×28 Magnification – Low‑power 2× for quick target acquisition expands to 6× for medium‑range precision, all with a consistent 4.1 in eye relief.
- Dual Green/Red Illuminated Mil‑Dot Reticle – Engraved reticle in the second focal plane lets you hold hold‑over at any magnification, with selectable green or red illumination for low‑light shooting.
- Built‑in Illuminated Bubble Level – A level bubble with its own illuminator helps keep the scope perfectly level for accurate ranging and hold‑over.
- Fully Multi‑Coated Optics – Eight‑layer coating maximizes light transmission, delivering bright images and true color fidelity across the zoom range.
- 25 MOA Click Adjustments – Quarter‑MOA (1/4 MOA) clicks let you dial in windage and elevation with fine, repeatable precision.
Specifications
| Brand | Konus |
| Product name | KonusPro AS‑34 2‑6×28 Matte Black Scope |
| Model / MPN | 7170 |
| UPC | 698156071700 |
| Tube diameter | 34 mm |
| Finish | Matte |
| Weight | 560 gr |
| Objective diameter | 28 mm |
| Magnification range | 2‑6× |
| Eye relief | 4.1 in |
| Field of view | 54 ft @100 yd |
| Reticle type | Mil‑Dot (second focal plane) with dual green/red illumination |
| Reticle illumination | Dual green/red, 5 brightness settings |
| Parallax adjustment | Fixed (None) |
| Adjustment increment | 25 MOA (1/4 MOA) per click |
| Battery type | CR2032 |
| Optic coating | Fully Multi‑Coated |
| Waterproof / Fogproof / Shockproof | Yes |
| Dry nitrogen filled | Yes |
| Illuminated bubble level | Yes |
What’s included
- 1 × KonusPro AS‑34 2‑6×28 Matte Black riflescope
- 1 × CR2032 battery (installed)
- Owner’s manual
Good to know
- The scope’s dual‑illuminated reticle is in the second focal plane, so hold‑over calculations remain consistent at any magnification.
- The built‑in bubble level is illuminated and can be used without removing the scope from the rifle, saving time on the range.
- Battery life is optimized for CR2032 cells; carry a spare for extended shooting sessions.
Additional Information
Adjustment Increment: |
25 moa |
Brand: |
Konus |
Eye Relief: |
4.1 in |
Field of View: |
54 ft@100yd |
Maximum Magnification: |
6 |
Minimum Magnification: |
2 |
Model: |
KonusPro |
Objective: |
28 mm |
Optic Coating: |
Fully Multi-Coated |
Overall Length: |
212.000 mm |
Parallax Adjustment: |
Fixed (None) |
Product Weight: |
560.0000 gr |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Series: |
AS-34 |
Tube Diameter: |
34 mm |
GTIN / UPC: |
698156071700 |
Optics Type: |
Riflescope |
Battery Type: |
CR2032 |
Color: |
Matte Black |
Finish: |
Matte |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Other |
Waterproof: |
False |
