Sightmark

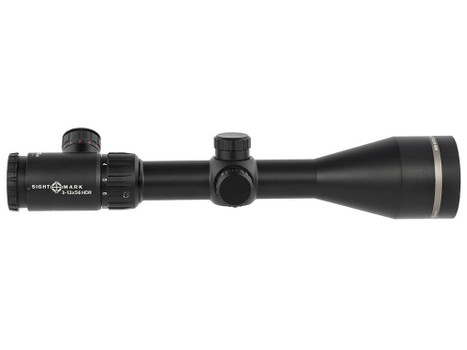

Sightmark SM13080HDR Core HX Black Hardcoat Anodized 3-12x56mm 30mm Tube Illuminated Red HDR Reticle
- SKU:
- SM13080HDR
- UPC:
- 812495021787
- MPN:
- SM13080HDR
Description
The Core HX delivers a versatile 3‑12× magnification envelope in a compact 12.72‑inch package, perfect for hunters who need both a quick‑scan low power and a crisp high‑power shot. Its 56 mm objective and fully multi‑coated lenses produce a bright, high‑contrast image even at dawn or dusk, and the second‑focal‑plane HDR dot stays true across the entire zoom range. Red illumination is supplied by a long‑life CR2032 battery, giving you a clear reticle in low‑light situations without sacrificing night‑vision capability. The 30 mm tube fits standard rings, and the anodized finish protects the aluminum body from the elements, while the side‑focus parallax knob lets you zero out at 100 yards for consistent accuracy. With 0.25 MOA click adjustments and a generous eye‑relief window of 3.8‑4.3 in, the Core HX is ready to mount on any hunting rifle and perform reliably from the woods to the field.
Key features
- 3‑12× Magnification Range – Provides low‑power scouting at 3× and high‑power precision out to 12× without changing optics.
- 56 mm Objective Lens – Large objective gathers more light, improving image brightness and resolution in dawn or dusk hunting.
- Fully Multi‑Coated Optics – Each lens surface receives multiple anti‑reflective layers, boosting transmission and reducing glare.
- Illuminated Red HDR Reticle (SFP) – Second‑focal‑plane HDR dot stays true at any magnification; red illumination powered by a CR2032 battery aids target acquisition in dim conditions.
- 30 mm Tube Diameter – Standard tube size fits most 30 mm rings and mounts, simplifying installation on a wide range of rifles.
- 0.25 MOA Adjustment Increment – Fine click spacing lets you make precise windage and elevation changes for accurate shot placement.
- Adjustable Side‑Focus Parallax (100 yd) – Eliminates parallax error at typical hunting distances, sharpening the point of aim.
- Anodized Finish – Hard‑coat anodizing resists wear and corrosion while keeping the scope lightweight.
Specifications
| Brand | Sightmark |
| Product name | Core HX 3-12x56 HDR Rifle Scope |
| Model / MPN | SM13080HDR |
| UPC | 812495021787 |
| Magnification range | 3-12x |
| Objective lens diameter | 56 mm |
| Tube diameter | 30 mm |
| Weight | 709 gr |
| Eye relief | 3.8-4.3 in |
| Field of view (min) | 8.8 ft @ 100 yd |
| Field of view (max) | 35.5 ft @ 100 yd |
| Adjustment increment | 0.25 MOA |
| Parallax adjustment | Adjustable side focus, 100 yd |
| Reticle type | Illuminated Red HDR (Second Focal Plane) |
| Reticle illumination | Red LED, CR2032 battery |
| Optic coating | Fully Multi‑Coated |
| Finish | Anodized |
| Waterproof | False (source conflict) |
What’s included
- 1 × Sightmark Core HX 3-12x56 HDR Rifle Scope
Good to know
- Parallax is set for 100 yd; adjust as needed for your typical shooting distance.
- Battery type is CR2032; replacement batteries are widely available and provide long life.
- The scope is rated as shock‑proof and fog‑proof; however, the warehouse spec lists waterproof as false, so verify sealing if you expect full sub‑mersion.
- Mounting requires a 30 mm tube ring; ensure your rifle’s mount matches this diameter.
Additional Information
Brand: |
Sightmark |
Eye Relief: |
3.8 in |
Field of View: |
8.8 ft@100yd |
Maximum Magnification: |
12 |
Minimum Magnification: |
3 |
Model: |
Core |
Objective: |
56 mm |
Series: |
HX |
Tube Diameter: |
30 mm |
GTIN / UPC: |
812495021787 |
Adjustment Increment: |
0.25 moa |
Optic Coating: |
Fully Multi-Coated |
Overall Length: |
323.000 mm |
Parallax Adjustment: |
Adjustable (Side Focus) |
Product Weight: |
709.0000 gr |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Optics Type: |
Riflescope |
Battery Type: |
CR2032 |
Finish: |
Anodized |
Reticle Type: |
Duplex |
Waterproof: |
False |
Color: |
Black Anodized |
Package Quantity: |
1 |
Packaging Type: |
EA |
