SWAMPFOX OPTICS

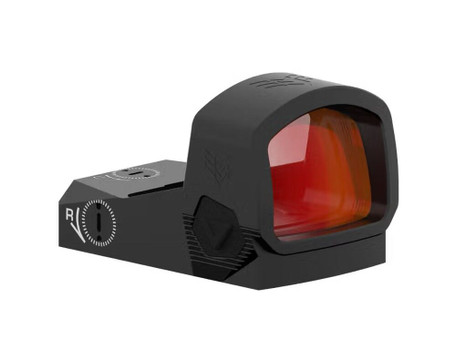

SWAMPFOX LBT2124-3R LIBERTY II RMR 1X24 3 MOA
- SKU:
- LBT21243R
- UPC:
- 889157002729
- MPN:
- LBT21243R
Description
The Liberty II’s 24 mm lens gives you a generous sight picture while the compact 1× magnification keeps the reticle on target at any distance. Its second‑focal‑plane (SFP) design means the dot stays the same size regardless of how far you’re zeroed, which is ideal for quick target acquisition on both pistols and rifles.
Battery life is a non‑issue thanks to the Shake N’ Wake system: the optic automatically powers down after a few minutes of inactivity and instantly wakes on motion, preserving the CR‑type battery for tens of thousands of hours of use. Ten brightness levels let you dial the dot from blazing daylight to a subtle low‑light glow, and the 0.5 MOA adjustment clicks give precise windage and elevation control.
Mounted on a universal RMR footprint, the Liberty II slides onto any RMR‑compatible rail without extra hardware. The hard‑anodized 7075‑T6 aluminum chassis is both lightweight (1.52 oz) and built to survive drops, rain (IPX7), and up to 1,500 G of shock, making it a rugged companion for home defense, concealed carry, or range work.
Key features
- 24 mm window – The larger aperture gives a wider field of view, making target acquisition faster on pistols and rifles alike.
- Universal RMR footprint – Fits any RMR‑compatible mount, so you can swap it onto a wide range of handguns and rifles without extra adapters.
- 10 illumination settings – From bright daylight to low‑light, the dial‑controlled brightness lets you dial in the perfect level on the fly.
- Shake N’ Wake auto on/off – The optic powers down after 225 seconds of inactivity and wakes instantly on motion, extending battery life.
- 3 MOA dot (red/green) + multi‑reticle – Choose a classic 3 MOA dot or rotate through three additional illuminated reticles for specialized shooting scenarios.
- 0.5 MOA adjustment increments – Fine windage/elevation tweaks let you zero the sight with precision without over‑adjusting.
- IPX7 waterproof, 1,500 G shockproof – Designed to survive rain, splashes, and the recoil of high‑power firearms without losing zero.
- 7075‑T6 hard‑anodized aluminum chassis – A rugged, lightweight alloy body resists dents and corrosion while keeping the sight compact.
Specifications
| Brand | Swampfox Optics |
| Product name | Liberty II 1x24 Red Dot |
| Model / MPN | LBT21243R |
| UPC | 889157002729 |
| Objective lens size | 24 mm |
| Magnification | 1× |
| Reticle type | 3 MOA dot (red or green) – optional multi‑reticle |
| Adjustment increment | 0.5 MOA |
| Parallax | Fixed (Parallax‑free @ 33 yd) |
| Field of view | 24 ft @ 100 yd |
| Illumination settings | 10 |
| Battery type | CR2032 (warehouse) / CR1632 (manufacturer page) |
| Weight | 1.52 oz |
| Dimensions (L×W×H) | 1.86 in × 1.20 in × 1.17 in |
| Tube diameter | 2 cm |
| Finish | Black (hard‑anodized) |
| Waterproof rating | IPX7 |
| Shock resistance | 1,500 G |
| Mount type | Universal RMR footprint |
| Optic coating | Fully multi‑coated, anti‑fog, hydrophobic |
What’s included
- 1 × Liberty II 1x24 Red Dot sight
- CR‑type battery (CR2032 or CR1632)
- Slotted head wrench
- S‑Wing wrench
- Rubber cover
- Black lens cloth
- M3.5×0.6 (4 pcs) mounting screws
- #4‑40 (4 pcs) mounting screws
- #6‑32 (8 pcs) mounting screws
- Owner’s manual
Good to know
- The optic is compatible with any RMR‑style mount; no additional adapters are required.
- Shake N’ Wake powers the sight down after 225 seconds of inactivity—keep the battery in good condition by removing it for long‑term storage.
- The listed battery type differs between sources (CR2032 vs. CR1632); both are CR‑type lithium cells—verify the exact size your mount requires before purchase.
Additional Information
Adjustment Increment: |
0.5 moa |
Brand: |
Swampfox Optics |
Field of View: |
24 ft@100yd |
Maximum Magnification: |
1 |
Minimum Magnification: |
1 |
Model: |
LBT21243R |
Objective: |
24 mm |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Tube Diameter: |
2 cm |
GTIN / UPC: |
889157002729 |
Optics Type: |
Red Dot / Reflex |
Battery Type: |
CR2032 |
Finish: |
Black |
Reticle Type: |
MOA |
Waterproof: |
True |
Package Quantity: |
1 |
Packaging Type: |
EA |
