SWAMPFOX OPTICS

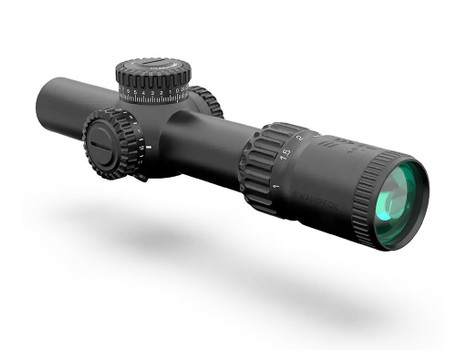

Swampfox Optics WAR16241GL Warhorse Green 1-6x24mm FFP
- SKU:
- WAR16241GL
- UPC:
- 889157002507
- MPN:
- WAR16241GL
Description
The Warhorse LPVO’s 34 mm tube and 24 mm objective deliver a bright, high‑resolution image while staying compact enough for AR‑style and bolt‑action platforms. Its first‑focal‑plane reticle scales with magnification, so hold‑overs and range estimates stay true from 1× to 6×. The Dragoon MIL pattern gives you precise mil‑dot references for tactical shooting or competition work.
Illumination is handled by a 12‑position LED system that pairs with night‑vision devices, letting you acquire the reticle in low‑light conditions without sacrificing battery life. The push‑pull elevation turret with zero‑reset and capped windage turret protect against accidental adjustments, while the 0.25 MOA/0.1 MIL click value ensures every turn translates into predictable point‑of‑impact movement.
With an eye relief of 3.43‑3.50 in and a field of view that drops from 105.68 ft at 1× to 18.32 ft at 6× (100 yd), the Warhorse offers both speed and precision. Fully multi‑coated, anti‑fog, and hydrophobic lenses give you reliable performance in rain, dust, and extreme temperatures, making this scope a versatile tool for hunting, tactical, or competition shooting.
Key features
- 1‑6× Magnification Range – Zooms from true 1× for rapid target acquisition to 6× for precise long‑range shots, keeping the reticle proportional at every power.
- 34 mm Tube, Green Finish – Compact 34 mm tube blends into tactical builds; the green coating reduces glare and blends with forested environments.
- Fully Multi‑Coated, Anti‑Fog, Hydrophobic Lenses – Coatings protect against fog, water, and scratches while maximizing light transmission for a bright, clear image.
- Dragoon MIL Reticle, 12‑Position Illumination – MIL‑scaled reticle works across the magnification range; illumination offers twelve brightness levels and night‑vision compatibility.
- 0.25 MOA / 0.1 MIL Click Value – Each turret click moves the point of impact predictably, enabling fine adjustments for accurate hold‑overs.
- 150 MOA Elevation, 100 MOA Windage Travel – Generous adjustment range lets you engage targets at extreme distances without hitting the limits of the turrets.
Specifications
| Brand | Swampfox Optics |
| Product name | Warhorse 1-6x24mm FFP LPVO |
| Model / MPN | WAR16241GL |
| UPC | 889157002507 |
| Finish | Green |
| Tube Diameter | 34 mm |
| Objective Lens Diameter | 24 mm |
| Magnification Range | 1‑6× |
| Eye Relief | 3.43‑3.50 in |
| Field of View @ 100 yd | 105.68‑18.32 ft |
| Reticle | Dragoon MIL |
| Reticle Focal Plane | First Focal Plane (FFP) |
| Illumination Positions | 12 |
| Lens Coating | Fully Multi‑Coated, Anti‑Fog, Hydrophobic |
| Parallax Adjustment | Fixed (None) |
| Weight | 23.37 oz |
| Length (L×W×H) | 10.08 in × 2.98 in × 2.48 in |
| Maximum Elevation Adjustment | 150 MOA |
| Maximum Windage Adjustment | 100 MOA |
| Click Value | 0.25 MOA / 0.1 MIL |
What’s included
- 1 × Swampfox Optics Warhorse 1‑6x24mm FFP LPVO
- CR2032 battery
- Allen 1.98 mm wrench for throw lever
- Scope manual
- Reticle manual
Good to know
- The scope is compatible with standard 34 mm Picatinny rails; verify your mount’s height before installation.
- Battery life is extended by the side‑mounted CR2032; a spare battery is recommended for extended field use.
- The green finish is a durable, non‑reflective coating suited for woodland and tactical environments.
Additional Information
Brand: |
Swampfox Optics |
Eye Relief: |
3.43 in |
Field of View: |
105.68 ft@100yd |
Maximum Magnification: |
6 |
Minimum Magnification: |
1 |
Model: |
Warhorse |
Objective: |
24 mm |
Optic Coating: |
Anti-Fog, Fully Multi-Coated, Hydrophobic |
Tube Diameter: |
34 mm |
GTIN / UPC: |
889157002507 |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
First Focal Plane (FFP) |
Optics Type: |
Riflescope |
Color: |
Green |
Finish: |
Green |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Other |
