Trijicon

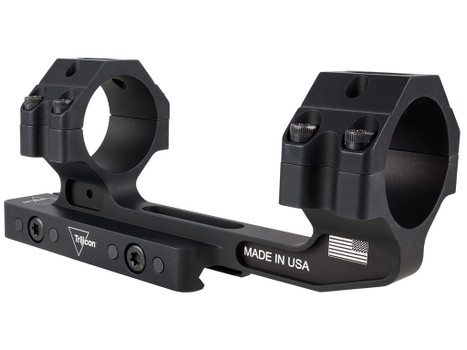

Trijicon AC22054 Cantilever Scope Mount/Ring Combo Matte Black Aluminum 30 mm Tube, Picatinny Rail Mount
- SKU:
- AC22054
- UPC:
- 719307618848
- MPN:
- AC22054
Description
The cantilever design drops the optic to a 1.535‑inch height, the same as standard clip‑on devices, so your primary scope and any thermal or night‑vision add‑ons sit on a common plane. That geometry gives a repeatable cheek weld and keeps eye‑relief consistent shot after shot.
Built from mil‑spec 6061‑T6 aluminum, the mount survives the rough‑and‑tumble life of a hunting or precision‑rifle platform while staying feather‑light. The flush‑mounting bolts sit flush against the rail, eliminating protruding hardware that can catch on gear or vegetation.
With a 30 mm tube and clearance for optics up to a 56 mm objective lens, the AC22054 pairs perfectly with Trijicon’s variable‑power series and any other 30 mm scope. The mount threads to any Mil‑Spec or NATO Picatinny rail, and the torque range of 30‑38 in‑lb guarantees a rock‑solid lock without crushing the rail.
Key features
- 30 mm Tube – Accepts standard 30 mm scope tubes, keeping the optic close to the bore line for a natural cheek weld.
- 1.535‑in. Height – Mounts the optic at the standard clip‑on height, ensuring perfect alignment with thermal or night‑vision devices.
- 6061‑T6 Aluminum Construction – Mil‑Spec drop‑test‑rated alloy provides a lightweight yet rock‑solid platform with excellent return‑to‑zero performance.
- Low‑Profile Flush Bolt – Sleek side profile eliminates snag points and reduces overall bulk for field carry.
- Objective Lens Up to 56 mm – Accommodates larger variable‑power scopes without compromising clearance.
- Torque Spec 30‑38 in‑lb – Factory‑recommended torque ensures secure mounting without over‑tightening.
Specifications
| Brand | Trijicon |
| Product name | Cantilever Scope Mount/Ring Combo |
| Model / MPN | AC22054 |
| UPC | 719307618848 |
| Material | 6061‑T6 Aluminum |
| Color | Matte Black |
| Scope tube size | 30 mm |
| Mount height above rail | 1.535 in |
| Rail / attachment type | Picatinny (MIL‑STD‑1913) |
| Maximum objective lens diameter | 56 mm |
| Torque specification (rail) | 30‑38 in‑lb |
| Length (overall) | 6.1 in |
| Width | 1.95 in |
What’s included
- 1 × Trijicon Cantilever Scope Mount (30 mm tube, 1.535 in height)
- 2 × Ring caps
- 8 × Screws
- 1 × Hex key
Good to know
- Torque the mount to 30‑38 in‑lb; over‑tightening can damage the Picatinny rail.
- Fits any Mil‑Spec or NATO Picatinny rail – verify rail dimensions before installation.
- Designed for optics with objective lenses up to 56 mm; larger lenses may not clear properly.
Additional Information
Brand: |
Trijicon |
Material: |
Aluminum |
Model: |
Cantilever |
Mount Height: |
1.535 in |
Package Quantity: |
1 |
Series: |
Scope Mount/Ring Combo |
GTIN / UPC: |
719307618848 |
Rail / Attachment Type: |
Picatinny (MIL-STD-1913) |
Color: |
Matte Black |
Packaging Type: |
EA |
