AGM Global Vision

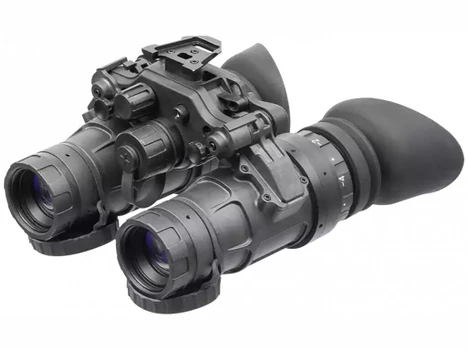

AGM Global Vision 12UN41284153011 UNVG Night Vision Goggles Black 1x 64-72 Ip/mm Resolution
- SKU:
- 12UN41284153011
- UPC:
- 810164390189
- MPN:
- 12UN41284153011
- Width:
- 9.40 (in)
- Height:
- 6.50 (in)
- Depth:
- 10.70 (in)
Description
The UNVG’s dual‑channel architecture means each eye gets its own image intensifier tube, so you can operate with one eye closed or both eyes open for maximum flexibility. The tubes automatically power down when their pod is turned sideways, conserving battery and extending runtime. Manual gain control lets you dial in the perfect brightness as lighting conditions shift, while the built‑in infrared illuminator fills in total darkness without giving away your position.
Optics are a 25 mm front element at f/1.23, delivering a crisp 40° field of view at 1× magnification. Diopter adjustment ranges from –6 to +2, so shooters with prescription glasses or varying eyesight can get a clear picture without additional optics. The unit weighs only 500 g (1.1 lb), making it comfortable for long‑duration wear on headsets or helmets via a standard dovetail mount.
Key features
- 500 g (1.1 lb) weight – Light enough for extended wear without fatigue, yet built with a rugged composite housing for durability.
- Up to 15 hr AA battery life – One AA alkaline cell powers the device for a full day of operation, ideal for day‑long missions.
- External battery pack – up to 50 hr – Four AA cells (or two CR123A) in the supplied pack extend runtime for multi‑day excursions.
- Dual‑channel design – Independent tube pods let you use a single eye or both eyes, and each pod shuts off automatically when tilted sideways.
- Manual gain control – Adjust image brightness on the fly to maintain optimal clarity as ambient light changes.
- Integrated infrared illuminator – Provides illumination in total darkness without compromising stealth.
- Diopter adjustment –6 to +2 – Fine‑tune focus for users with varying eyesight, ensuring a sharp image across the entire field.
- 40° field of view, 1× magnification – Wide view lets you maintain situational awareness while still delivering the detail needed for target identification.
Specifications
| Brand | AGM Global Vision |
| Product name | UNVG Night Vision Goggles |
| Model / MPN | 12UN41284153011 |
| UPC | 810164390189 |
| Weight | 500 g (1.1 lb) |
| Battery type | One AA (1.5 V) or external pack (four AA or two CR123A) |
| Battery life (AA) | Up to 15 hours |
| Battery life (external four AA) | Up to 50 hours |
| Battery life (external two CR123A) | Up to 30 hours |
| Infrared illuminator | Yes |
| Diopter adjustment | -6 to +2 diopters |
| Focus range | 0.25 m to infinity |
| Lens system | 25 mm; F/1.23 |
| Field of view | 40° |
| Magnification | 1× |
| Image intensifier tube | Gen 2+ or Gen 3 |
| Mounting options | Standard dovetail headset/helmet mount |
What’s included
- 1 × UNVG Night Vision Goggles
- External battery pack (four AA)
- Connecting cable with battery adapter
- 2 × Demist shields
- 2 × Sacrificial windows
- Carrying case
Good to know
- The device can run on a single AA alkaline battery for up to 15 hours; the included external pack extends runtime to 50 hours.
- Mounts to any standard dovetail headset or helmet, providing flexibility for tactical or outdoor setups.
- Export of night‑vision equipment is regulated by U.S. law; purchasers must be U.S. persons and comply with export restrictions.
Additional Information
Battery Life: |
15-50 hrs |
Field of View: |
40 Degrees |
Brand: |
AGM Global Vision |
Eye Relief: |
30 mm |
Maximum Magnification: |
1 |
Minimum Magnification: |
1 |
Model: |
UNVG |
Objective: |
25 mm |
Optic Coating: |
Multi-Coated |
Tube Diameter: |
18 mm |
GTIN / UPC: |
810164390189 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
CR123A |
Finish: |
Black |
Reticle Type: |
Other |
Waterproof: |
True |
Color: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
