AGM Global Vision

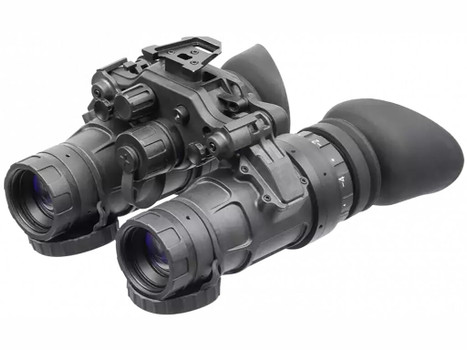

AGM Global Vision 12UN41284154011 UNVG Night Vision Goggles Black 1x 64-72 Ip/mm Resolution
- SKU:
- 12UN41284154011
- UPC:
- 810164390196
- MPN:
- 12UN41284154011
- Width:
- 9.30 (in)
- Height:
- 6.50 (in)
- Depth:
- 10.70 (in)
Description
The UNVG’s compact composite housing—matte black PEEK reinforced with glass‑fiber—keeps the unit light at just 17.6 oz (500 g) while standing up to the bumps and drops of field use. Its dual‑channel architecture means you can flip one pod up for quick glance work or drop both for full binocular immersion, with each pod automatically powering down when tipped to save juice.
Optical performance hinges on a 25 mm multi‑coated objective paired with a PVS‑14‑compatible eyepiece, delivering a crisp 1× image across a generous 40° field of view. Manual gain control lets you dial in the perfect brightness, while the built‑in infrared illuminator fills in the dark when ambient light is scarce. The system accepts either a Gen 2+ or Gen 3 image intensifier tube, giving you upgrade paths as technology advances.
Key features
- Dual‑Channel Design – Each eye has its own image intensifier tube, allowing single‑eye operation or full binocular vision without sacrificing depth perception.
- Multi‑Coated Optics – The 25 mm objective and eyepiece lenses are multi‑coated to maximize light transmission and reduce glare in low‑light environments.
- Manual Gain Control – Adjusts image brightness on the fly, keeping the picture clear as ambient light levels shift during a mission.
- Auto‑Off Pod Sensors – Each tube shuts down automatically when its pod is turned sideways, conserving power and extending battery life.
- Extended Battery Option – Standard AA alkaline cell provides up to 15 hours; an external CR123A pack (included) pushes runtime to 50 hours for prolonged operations.
- Dovetail Mount Interface – Quick‑attach dovetail base lets you mount the goggles on helmets or headsets, and they accept PVS‑14‑style accessories for added flexibility.
Specifications
| Brand | AGM Global Vision |
| Product name | UNVG Night Vision Goggles |
| Model / MPN | 12UN41284154011 |
| UPC | 810164390196 |
| Generation | Gen 2+ |
| Magnification | 1× |
| Field of view | 40° |
| Objective lens diameter | 25 mm |
| Optic coating | Multi‑Coated |
| Reticle type | Other |
| Battery type (standard) | AA alkaline |
| External battery pack | CR123A |
| Battery life (standard) | 15 hrs |
| Battery life (external pack) | 50 hrs |
| Weight (unloaded) | 17.6 oz / 500 g |
| Finish | Matte black |
| Waterproof | No |
| Parallax adjustment | Fixed (None) |
| Mounting system | Dovetail |
| Manual gain control | Yes |
| Auto‑off pod sensors | Yes |
What’s included
- 1 × AGM UNVG Night Vision Goggles (dual‑channel)
- External CR123A battery pack
- AA alkaline battery (not included)
- Owner’s manual
- Dovetail mounting hardware
Good to know
- The device is compatible with PVS‑14 style accessories, allowing you to add night‑vision compatible lenses or filters.
- Weight is 17.6 oz; expect a slight increase when the external battery pack is attached.
- The goggles are not waterproof; keep them dry or use a rain cover in wet conditions.
- Battery life varies with tube generation; Gen 3 tubes may achieve longer runtimes than Gen 2+ tubes.
Additional Information
Battery Life: |
15-50 hrs |
Field of View: |
40 Degrees |
Brand: |
AGM Global Vision |
Maximum Magnification: |
1 |
Minimum Magnification: |
1 |
Model: |
UNVG |
Objective: |
25 mm |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Fixed (None) |
GTIN / UPC: |
810164390196 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
CR123A |
Finish: |
Black |
Reticle Type: |
Other |
Waterproof: |
False |
Color: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
