ATN

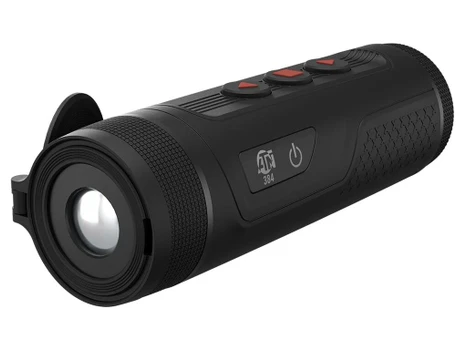

ATN TIMNBLT319G6 BLAZETREK 319 2.25-18X
- SKU:
- TIMNBLT319G6
- UPC:
- 658175473374
- MPN:
- TIMNBLT319G6
- Width:
- 5.00 (in)
- Height:
- 4.00 (in)
- Depth:
- 7.10 (in)
Description
The BlazeTrek 319 packs a 12 µm VOx uncooled focal‑plane array into a handheld that fits in a backpack. Its 384×288 sensor paired with an 800×600 OLED display gives you crisp thermal pictures at a smooth 50 Hz refresh, while the ≤18 mK NETD lets you spot a human silhouette past a thousand yards even on a cold night. The 19 mm f/1.0 lens delivers a 14.4° × 10.8° field of view, and the manual focus lets you zero in from one meter out to infinity.
Variable magnification from 2.25× to 18× means you can scan a wide area then dial in on a target without swapping devices. The monocular’s eye relief is set at 5 cm, and the diopter adjustment (-5 to +5 D) lets any shooter get a sharp view. Six built‑in color palettes—White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia—let you tailor contrast to terrain, snow, or foliage for quick recognition.
A rugged IP67‑rated black housing protects the electronics from rain, dust and even brief sub‑mersion. The internal rechargeable battery runs roughly eight hours, and a USB‑C port lets you hook up an external power pack for longer outings. With 32 GB of onboard storage and Wi‑Fi streaming to the ATN Connect app, you can record video or stills and review them on a phone or tablet without ever removing the unit.
Key features
- 2.25‑18× Variable Magnification – Zoom from close‑range identification to long‑range observation without changing optics, keeping the same eye relief and reticle.
- 384×288 Thermal Sensor – 12 µm pixel pitch delivers clear imagery; the 800×600 OLED screen shows detail at 50 Hz refresh.
- ≤18 mK NETD Sensitivity – Detects minute temperature differences, allowing reliable target detection beyond 1,000 yd in varied environments.
- IP67 Waterproof Construction – Sealed housing survives rain, mud and sub‑mersion, so you can field‑use it in harsh weather.
- Built‑in 8 hr Rechargeable Battery – Internal lithium pack runs all day; USB‑C port lets you power up from an external source for extended missions.
- Integrated Wi‑Fi & 32 GB Storage – Stream live video to a phone or tablet via the ATN Connect app and store images/video without extra media cards.
Specifications
| Brand | ATN |
| Product name | BlazeTrek 319 Thermal Monocular |
| Model / MPN | TIMNBLT319G6 |
| UPC | 658175473374 |
| Sensor resolution | 384×288 |
| Pixel size | 12 µm |
| NETD | ≤18 mK |
| Magnification | 2.25‑18× |
| Field of view (HxV) | 14.4° × 10.8° |
| Eye relief | 5 cm |
| Diopter adjustment | -5 to +5 D |
| Display resolution | 800×600 OLED |
| Refresh rate | 50 Hz |
| Color palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Battery type | Internal rechargeable |
| Battery life | ~8 hours |
| External power support | USB‑C 5 VDC / 2 A |
| Waterproof rating | IP67 |
| Operating temperature | -30 °C to 55 °C |
| Dimensions (L × W × H) | 6.20 in × 2.23 in × 1.98 in (158 mm × 57 mm × 50 mm) |
| Finish | Black |
| Optic coating | Multi‑Coated |
| Reticle type | Other |
| Tube diameter | 3.9 cm |
| Objective diameter | 3.91 mm |
| Internal storage | 32 GB |
| Recording capability | Video and still image capture |
| Wi‑Fi | Built‑in |
| App support | ATN Connect (iOS/Android) |
What’s included
- 1 × ATN BlazeTrek 319 Thermal Monocular
- Internal rechargeable battery (pre‑installed)
- USB‑C charging cable
- Owner’s manual
Good to know
- The monocular’s USB‑C port can power the unit from an external battery pack for extended field use.
- Diopter adjustment allows users with vision differences to achieve a clear image without additional optics.
- All six color palettes are selectable via the front control wheel; choose White Hot for dark terrain or Black Hot for snow.
- Internal 32 GB storage means you can record video without carrying extra memory cards.
Additional Information
Brand: |
ATN |
Eye Relief: |
5 cm |
Field of View: |
9 ft@100yd |
Maximum Magnification: |
18 |
Minimum Magnification: |
2.25 |
Model: |
TIMNBLT319G6 |
Objective: |
3.91 mm |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Fixed (None) |
Tube Diameter: |
3.9 cm |
GTIN / UPC: |
658175473374 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
Other |
Finish: |
Black |
Reticle Type: |
Other |
Waterproof: |
True |
Package Quantity: |
1 |
Packaging Type: |
EA |
