ATN

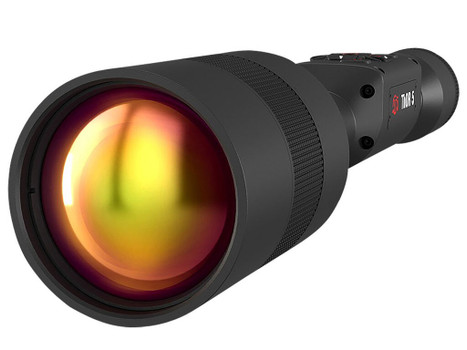

ATN TIWST5675A Thor 5 640 Thermal Rifle Scope, Black Anodized 5-40x Smart Mil Dot Reticle w/Zoom 640x480 60 fps Resolution
- SKU:
- TIWST5675A
- UPC:
- 658175123484
- MPN:
- TIWST5675A
Description
The THOR 5’s 30 mm tube houses a Gen 5 thermal engine that pushes a 640×480 sensor with a 12 µm pixel pitch, giving you clear, high‑contrast images even in hot or low‑contrast conditions. Its AI‑enhanced SharpIR™ processing pulls out detail that older generations simply miss, letting you spot threats at longer ranges.
Zoom from 5× to 40× while the Smart Mil‑Dot reticle automatically scales, so you can dial in holdovers without hunting for a separate reticle. The reticle is fully editable via ATN’s software, so you can load custom patterns for specific ballistics or hunting scenarios.
A high‑profile 30 mm QD mount and 90 mm eye relief keep the scope low‑profile on the rifle, while the rugged aluminum chassis—finished in black anodized coating—survives drops, rain, and dust. The built‑in 60 fps video recorder captures what you see, and the USB‑C rechargeable battery runs 10‑14 hours on a single charge.
Key features
- 5‑40× Magnification – Zooms from 5× to 40× while the Smart Mil‑Dot reticle scales automatically, keeping holdovers precise at any range.
- 640×480 12 µm Sensor – Delivers crisp thermal imagery at 60 fps, letting you track moving targets and record video without lag.
- 30 mm Main Tube, 75 mm Objective – Provides a wide field of view (5.90‑4.40° @ 100 yd) and robust mounting options for most rifle platforms.
- Smart Mil‑Dot Reticle – Dynamic reticle adjusts with magnification; custom reticles can be created via ATN’s Reticle Editor.
- Rechargeable USB‑C Power – Li‑ion battery offers 10‑14 hours of operation; USB‑C charging simplifies field recharging.
- Rugged Construction – Aluminum body with black anodized finish, impact‑proof, waterproof and weather‑resistant for harsh environments.
Specifications
| Brand | ATN |
| Product name | THOR 5 Thermal Rifle Scope |
| Model / MPN | TIWST5675A |
| UPC | 658175123484 |
| Color | Black Anodized |
| Finish | Matte |
| Material | Aluminum |
| Tube diameter | 30 mm |
| Objective lens diameter | 75 mm |
| Magnification | 5‑40× |
| Resolution | 640×480, 12 µm pixel pitch, 60 fps |
| Sensor generation | Gen 5 |
| Reticle | Smart Mil‑Dot (multiple options) |
| Eye relief | 90 mm |
| Length | 12.99 in |
| Weight | 6.84 lb |
| Field of view | 5.90‑4.40° @ 100 yd |
| Battery type | Li‑ion rechargeable |
| Power source | USB‑C |
| Battery life | 10‑14 hours |
| Mount type | 30 mm HP QD |
| Includes | Eyecup, Scope cover, USB‑C cable, Lens tissue, Flip‑open cap, High‑profile QD mount |
What’s included
- 1 × ATN THOR 5 Thermal Rifle Scope (TIWST5675A)
- Eyecup
- Scope cover
- USB‑C cable
- Lens tissue
- Flip‑open cap
- High‑profile QD mount
Good to know
- The scope is compatible with any rifle that accepts a 30 mm quick‑detach mount; verify your rifle’s mount pattern before purchase.
- Battery is rechargeable via USB‑C; a spare Li‑ion pack is not included and must be purchased separately.
- Reticle customization requires the ATN Reticle Editor software, available for iOS and Android devices.
- All dimensions are for the unloaded scope; mounting hardware adds a small amount to overall length.
Additional Information
Adjustment Increment: |
0.1 moa |
Battery Life: |
10 |
Brand: |
ATN |
Eye Relief: |
90 mm |
Field of View: |
5.9 ft@100yd |
Maximum Magnification: |
40 |
Minimum Magnification: |
5 |
Model: |
Thor 5 |
Objective: |
75 mm |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Series: |
640 |
Tube Diameter: |
30 mm |
GTIN / UPC: |
658175123484 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
Other |
Finish: |
Anodized |
Reticle Type: |
Other |
Waterproof: |
True |
Color: |
Black Anodized |
Package Quantity: |
1 |
Packaging Type: |
EA |
