ATN

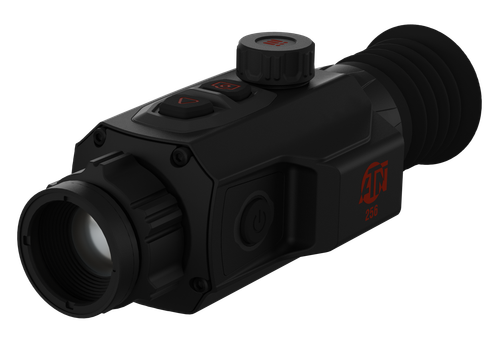

ATN TIWST6M215 THOR6 MINI 256 2-16X
- SKU:
- TIWST6M215
- UPC:
- 658175987659
- MPN:
- TIWST6M215
- Width:
- 7.80 (in)
- Height:
- 5.20 (in)
- Depth:
- 11.30 (in)
Description
The ThOR 6 Mini packs a 12 µm VOx thermal core into a lightweight 30 mm tube, delivering a crisp 256×192 image with a NETD of ≤20 mK. That sensitivity lets you pick out a deer’s heat signature against warm ground or spot a hog hidden in dense brush, even at the edge of the 1 200 m detection range.
Its 2‑16× optical magnification, combined with step‑and‑smooth digital zoom, gives you the flexibility to scan wide terrain or zero in on a target without losing the broader picture. Picture‑in‑Picture mode keeps a secondary view active while you zoom, and Zeroing Freeze lets you pause the frame at impact to make precise reticle adjustments without rushing.
Power comes from two included 18650 rechargeable batteries, delivering about eight hours of continuous operation, and a USB‑C port lets you run the scope from an external source for longer sessions. With 64 GB of internal storage, you can capture video, audio and stills on the fly, then review or share them directly from the device.
Key features
- 12 µm VOx Uncooled Sensor – The 12 µm VOx focal‑plane array delivers a 256×192 pixel image with a NETD of ≤20 mK, letting you resolve the faintest heat signatures at long range.
- 2‑16× Variable Magnification – Optical magnification spans from 2× for wide‑field scanning to 16× for precise target acquisition, all with a smooth step‑and‑smooth zoom mechanism.
- 50 mm Eye Relief – Generous eye relief lets you maintain a comfortable shooting position on rifles with larger stocks or cheek risers.
- 64 GB Internal Storage – Built‑in SSD stores photos, video and audio recordings, enabling you to review hunts or share footage without a separate device.
- Dual 18650 Rechargeable Batteries – Two included 18650 cells provide roughly eight hours of runtime; the scope also accepts external USB‑C power for extended use.
- Picture‑in‑Picture (PiP) Mode – Zoom in on a target while a secondary wide‑view window stays active, so you never lose situational awareness.
- Zeroing Freeze & Reticle Transparency – Pause the image at impact to fine‑tune the reticle, and adjust reticle opacity on the fly for an unobstructed sight picture.
Specifications
| Brand | ATN |
| Product name | ThOR 6 Mini 256x192 2-16x Thermal Rifle Scope |
| Model / MPN | TIWST6M215 |
| UPC | 658175987659 |
| Detector Type | 12 µm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 256×192 |
| Thermal Sensitivity (NETD) | ≤20 mK |
| Refresh Rate | 50 Hz |
| Magnification Range | 2‑16× |
| Objective Lens Diameter | 15 mm |
| Tube Diameter | 30 mm |
| Eye Relief | 50 mm |
| Reticle Type | Illuminated, 10 styles, Second Focal Plane |
| Reticle Transparency Control | Yes |
| Picture‑in‑Picture (PiP) | Yes |
| Zeroing Freeze | Yes |
| Battery Type | 18650 rechargeable (2 included) |
| Battery Life | ~8 hrs continuous |
| External Power Supply | USB‑C 5 V / 2 A |
| Internal Storage Capacity | 64 GB |
| Video / Audio Recording | Yes |
| Hot Point Tracking | Yes |
| SharpIR® AI Enhancement | Yes |
| Field of View (HxV) | 11.7° × 8.8° |
| Diopter Range | ‑5 to +5 D |
| Finish | Black |
| Proofs | True |
| Optics Type | Night Vision / Thermal |
What’s included
- 1 × ATN ThOR 6 Mini 256×192 2‑16× Thermal Rifle Scope
- 2 × 18650 rechargeable batteries
- User manual
Good to know
- The scope uses a standard 30 mm tube, so it fits most rifle mounting rings designed for 30 mm optics.
- Dual 18650 batteries are removable; keep spares charged for extended outings.
- Internal 64 GB storage fills quickly when recording video; consider off‑loading footage after each hunt.
Additional Information
Adjustment Increment: |
0.5 moa |
Brand: |
ATN |
Eye Relief: |
70 mm |
Field of View: |
20 ft@100yd |
Maximum Magnification: |
16 |
Minimum Magnification: |
2 |
Model: |
Thor 6 Mini |
Objective: |
15 mm |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Tube Diameter: |
30 mm |
GTIN / UPC: |
658175987659 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
Other |
Finish: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Illuminated |
Waterproof: |
True |
