ATN

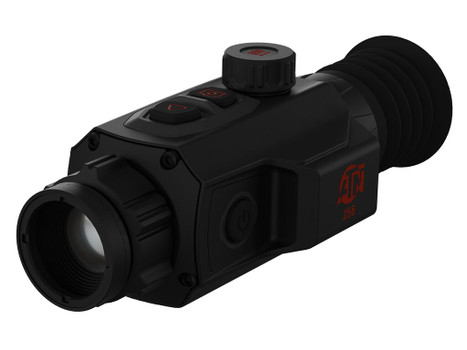

ATN TIWST6M225 THOR6 MINI 256 3.5-28X
- SKU:
- TIWST6M225
- UPC:
- 658175978251
- MPN:
- TIWST6M225
- Width:
- 7.80 (in)
- Height:
- 5.20 (in)
- Depth:
- 11.20 (in)
Description
The 12 µm VOx uncooled focal‑plane array in the THOR 6 Mini gives you a 256×192 thermal picture that’s bright, detailed and fast‑refreshing at 50 Hz. With a ≤20 mK NETD you’ll spot a coyote’s heat signature through dense brush or a hog’s outline in total darkness, then lock on with the scope’s step‑and‑smooth zoom and picture‑in‑picture mode.
Its 25 mm (F/1.0) germanium lens and multi‑coated 42 mm tube feed that image into an 800×600 OLED display, while the side‑focus parallax knob lets you sharpen focus without moving the scope. The illuminated first‑focal‑plane reticle stays true at every magnification, so you can hold over the same way from 3.5× out to 28× in.
Two 18650 rechargeable batteries (included) give roughly eight hours of run time, and the unit can be powered externally via USB‑C when you need longer endurance. Rugged magnesium‑alloy construction, waterproof sealing and a generous 90 mm eye‑relief make the THOR 6 Mini a reliable companion for fast‑moving hunts.
Key features
- 256×192 sensor – Delivers a clear 800×600 OLED image with ≤20 mK NETD, letting you see faint heat signatures at up to 1500 m.
- 3.5‑28× magnification – Wide low‑power view for scanning and high‑power detail for precise shots, all in a single compact optic.
- First‑Focal‑Plane reticle – Reticle size stays constant relative to the target, so holdovers work the same at any magnification.
- Side‑focus parallax adjustment – Fine‑tune focus without moving the scope, ensuring a crisp sight picture in every lighting condition.
- 90 mm eye relief – Generous eye‑relief lets you shoot comfortably with glasses or a cheek weld, reducing eye strain on long hunts.
- Rugged magnesium‑alloy housing – Black, magnesium construction provides heat dissipation and durability while keeping weight low.
- Multi‑coated 42 mm tube – Enhanced light transmission and protection against scratches and corrosion.
- Built‑in video & audio recording – Capture 8 hr of footage on the internal 64 GB storage, with recoil‑activated video for after‑action review.
Specifications
| Brand | ATN |
| Product name | THOR 6 Mini Thermal Scope |
| Model / MPN | TIWST6M225 |
| UPC | 658175978251 |
| Sensor resolution | 256×192 |
| Detector type | 12 µm VOx Uncooled Focal Plane Array |
| Thermal sensitivity (NETD) | ≤20 mK |
| Magnification range | 3.5‑28× |
| Objective diameter | 25 mm |
| Tube diameter | 42 mm |
| Eye relief | 90 mm (warehouse) / 50 mm (manufacturer) |
| Adjustment increment | 0.2 MOA |
| Field of view | 20.5 ft @ 100 yd |
| Reticle type | Illuminated, First Focal Plane |
| Parallax adjustment | Side‑focus, adjustable |
| Optic coating | Multi‑Coated |
| Finish | Black |
| Waterproof | True |
| Battery type | 18650 rechargeable (2 included) |
| Battery life | ~8 hrs (4 hr per battery) |
| Weight | 1.0 lb |
| Display type | 0.32" OLED, 800×600 |
| Refresh rate | 50 Hz |
| Video recording | Yes, 64 GB internal |
| Wi‑Fi hotspot | Yes |
| Built‑in hot‑point tracking | Yes |
What’s included
- 1 × ATN THOR 6 Mini 3.5‑28× 256×192 thermal scope
- 2 × 18650 rechargeable batteries
- Owner’s manual
- USB‑C power cable
Good to know
- The scope’s side‑focus parallax knob adjusts focus without moving the optic, preserving zero.
- Battery life is quoted at ~8 hours total; swapping batteries extends runtime without powering down.
- Eye‑relief discrepancy: warehouse data lists 90 mm, manufacturer page lists 50 mm. Both values are recorded in the specs; verify which fits your shooting posture.
Additional Information
Adjustment Increment: |
0.2 moa |
Brand: |
ATN |
Eye Relief: |
90 mm |
Field of View: |
20.5 ft@100yd |
Maximum Magnification: |
28 |
Minimum Magnification: |
3.5 |
Model: |
Thor 6 Mini |
Objective: |
25 mm |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Adjustable (Side Focus) |
Reticle Focal Plane: |
First Focal Plane (FFP) |
Tube Diameter: |
42 mm |
GTIN / UPC: |
658175978251 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
Other |
Finish: |
Black |
Reticle Type: |
Illuminated |
Waterproof: |
True |
Package Quantity: |
1 |
Packaging Type: |
EA |
