HAWKE SPORT OPTICS

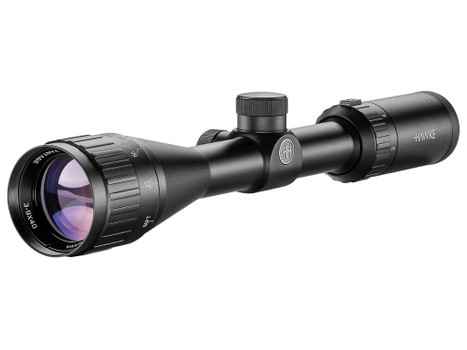

Hawke Sport Optics 14123 Vantage Riflescope Black 3-9x40mm 1" Tube Mil-Dot Reticle
- SKU:
- 14123
- UPC:
- 5054492141234
- MPN:
- 14123
- Width:
- 7.20 (in)
- Height:
- 3.20 (in)
- Depth:
- 15.60 (in)
Description
The Vantage’s 1‑inch mono‑tube houses Hawke’s H2 optical system, delivering an 11‑layer fully multi‑coated lens train that throws bright, sharp images across the 3‑9x magnification range. The fast‑focus ocular lets you zero the scope quickly, while the capped low‑profile turrets give you a solid grip for rapid elevation and windage changes.
With a 40 mm objective and 3.5‑inch eye relief, the scope provides a generous exit pupil and comfortable cheek weld, even on rifles with higher recoil. The Mil‑Dot reticle sits on a second focal plane, so the spacing stays consistent regardless of zoom, making range‑estimation drills straightforward.
Parallax is fully adjustable, letting you fine‑tune focus from 10 yd out to infinity—critical for eliminating sight‑shift on longer shots. The 0.25 MOA click value gives precise adjustments, and the overall length of 12.7 in keeps the scope compact enough for most rifle mounts without sacrificing performance.
Key features
- 3‑9x Magnification Range – Provides low‑power 3× for quick target acquisition and high‑power 9× for precise aiming at longer distances.
- 1" Mono‑Tube Chassis – A single‑piece tube maintains alignment and simplifies mounting on any standard 30‑mm rail.
- Fully Multi‑Coated 11‑Layer Lenses – Maximum light transmission and crisp images even in low‑light conditions.
- Mil‑Dot Second Focal Plane Reticle – Hold‑over and hold‑under aiming points stay true at any magnification, ideal for range estimation.
- 0.25 MOA Click Adjustments – Fine windage and elevation tweaks let you dial in sub‑MOA accuracy.
- Adjustable Parallax – Eliminates eye‑shift error for consistent point‑of‑aim from 10 yd to infinity.
Specifications
| Brand | Hawke Sport Optics |
| Product name | Vantage 3‑9x40 AO Mil‑Dot Riflescope |
| Model / MPN | 14123 |
| UPC | 5054492141234 |
| Tube diameter | 1 in |
| Objective lens diameter | 40 mm |
| Weight | 17 oz |
| Eye relief | 3.5 in |
| Field of view | 39‑12.70 ft @ 100 yd |
| Magnification range | 3‑9x |
| Reticle type | Mil‑Dot (Second Focal Plane) |
| Parallax adjustment | Adjustable |
| Adjustment increment | 0.25 MOA |
| Lens coating | Fully Multi‑Coated (11 layers) |
| Finish | Black |
| Optic type | Riflescope |
| Series | Vantage |
| Proofs | True |
What’s included
- 1 × Hawke Sport Optics Vantage 3‑9x40 AO Mil‑Dot Riflescope
- Owner’s manual
Good to know
- Designed for standard 30‑mm Picatinny or Weaver rails; ensure your mount matches the 1" tube diameter.
- The Mil‑Dot reticle’s hold‑over points are calibrated for 100‑yard increments; use a rangefinder or known target size for accurate distance estimation.
- Fully nitrogen‑filled and O‑ring sealed; wipe the exterior with a soft cloth—no cleaning solvents needed for routine maintenance.
Additional Information
Eye Relief: |
3.50" |
Optic Coating: |
Fully Multi Coated |
Field of View: |
39 - 12.70ft @ 100yds |
Tube Diameter: |
1 in |
Objective: |
40 mm |
Parallax Adjustment: |
Adjustable |
Adjustment Increment: |
0.25 moa |
Brand: |
Hawke Sport Optics |
Maximum Magnification: |
9 |
Minimum Magnification: |
3 |
Model: |
Vantage |
Overall Length: |
12.700 in |
Product Weight: |
481.9000 gr |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Series: |
Riflescope |
GTIN / UPC: |
5054492141234 |
Optics Type: |
Riflescope |
Color: |
Black |
Finish: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Mil-Dot |
Waterproof: |
True |
