Lee

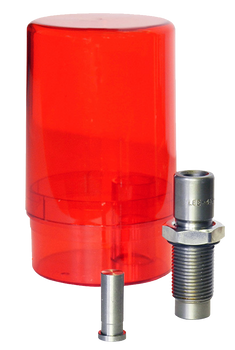

Lee Precision 90038 Classic Bullet Sizing Kit .309
- SKU:
- 90038
- UPC:
- 734307900380
- MPN:
- 90038
- Width:
- 3.20 (in)
- Height:
- 3.00 (in)
- Depth:
- 5.20 (in)
Description
The die’s 7/8" × 14 thread lets you bolt it straight onto the arbor of a standard single‑stage press, so you spend less time fiddling with adapters and more time getting consistent bullet diameters. When you push a cast lead bullet through the die nose‑first, the sizing chamber trims it to .309 in, while the integrated gas‑check seat crimps the check in the same motion—perfect for shooters who want a clean, repeatable process.
Because it’s all‑steel with a silver finish, the kit holds up to the heat and wear of daily reloading. The simple, no‑frills design means you can swap it in and out of your press quickly, keeping your workflow smooth whether you’re loading a few rounds or a full box. Pair it with Lee’s Liquid Alox for optimal lubrication and you’ve got a reliable, low‑maintenance solution for .309‑caliber cast bullets.
Key features
- 7/8" × 14 Thread – Fits the common 7/8‑inch arbor on most single‑stage reloading presses, so you can mount it without adapters.
- Sizes .309" Cast Lead Bullets – Brings cast bullets to a nominal .309‑inch diameter, ideal for .30‑caliber loads where uniformity matters.
- Seats & Crimps Gas Checks – As the bullet passes through the die, gas checks are automatically seated and crimped, saving a separate step.
- Nose‑First Bullet Direction – Bullets feed nose‑first, eliminating the need for a special nose punch or shell holder.
- All‑Steel Construction, Silver Finish – Durable steel body resists wear; the silver finish reduces glare and corrosion during shop use.
- Designed for Single‑Stage Presses – Works with any standard single‑stage reloading press; Lee Liquid Alox and a press are sold separately.
Specifications
| Brand | Lee Precision |
| Caliber / Gauge | .309 |
| Product name | Classic Bullet Sizing Kit .309 |
| Model / MPN | 90038 |
| UPC | 734307900380 |
| Material | Steel |
| Finish | Silver |
| Bullet diameter | .309 in |
| Bullet type | Cast Lead |
| Thread size | 7/8" × 14 |
| Overall width | 8 in |
| Packaging type | EA |
| Package quantity | 1 |
| Primary application | All Purpose |
| Series | Kit |
| Press compatibility | Standard single‑stage reloading presses |
| Bullet direction | Nose‑first |
What’s included
- 1 × Lee Precision Classic Bullet Sizing Kit .309 (MPN 90038)
Good to know
- The kit does not include a reloading press or Lee Liquid Alox; those must be purchased separately.
- Designed for cast lead bullets only; do not use with jacketed or plated projectiles.
- Thread pitch is standard 7/8" × 14; verify your press arbor matches this size before buying.
Additional Information
Material: |
Steel |
Brand: |
Lee |
Bullet Diameter: |
0.309 in |
Bullet Type: |
Cast Lead |
Model: |
Classic Bullet Sizing |
Primary Application: |
All Purpose |
Series: |
Kit |
GTIN / UPC: |
734307900380 |
Finish: |
Silver |
Packaging Type: |
EA |
Dimensions: |
7/8"x14 Threads |
Package Quantity: |
1 |
Overall Length: |
7.000 in |
Overall Width: |
8 in |
