Lee

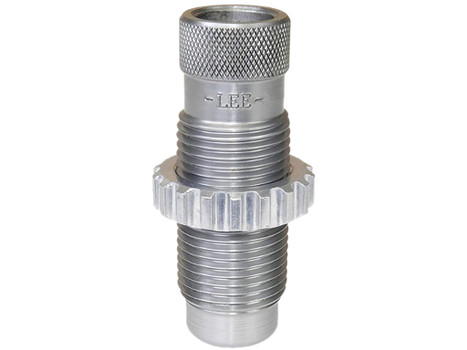

Lee Precision 90786 Taper Crimp Die 45 Colt/454 Casull
- SKU:
- P-301B0280C060BB25E
- UPC:
- 734307907860
- MPN:
- 90786
- Width:
- 1.60 (in)
- Height:
- 1.50 (in)
- Depth:
- 4.80 (in)
Description
The taper crimp die tackles the common issue of overly aggressive case head deformation. By applying a gentle, tapered crimp, it lets the case expand slightly during firing, which can improve feeding reliability in 45 Colt and 454 Casull pistols. The hardened‑steel body holds the crimp angle steady, so you get repeatable results batch after batch. Because the die is calibrated for a modified taper, it works best with jacketed bullets that already feature a crimp groove. If your projectiles lack a cannelure, the die won’t create one, so plan your bullet selection accordingly. For reloaders who already own Lee dies from 1986 onward, this model adds little—those newer dies already incorporate the same taper geometry. Installation is a breeze: the die threads directly into any standard Lee‑compatible reloading press. Once mounted, a few turns of the press handle produce a consistent crimp across the entire case stack, helping you achieve reliable chambering and consistent muzzle performance.
Key features
- Hardened steel construction – The die is machined from hardened steel, resisting wear and maintaining the precise crimp angle over many reloading sessions.
- Modified taper crimp angle – Lee’s design provides a gentle taper that reduces case head stress while still achieving a secure crimp on appropriate bullets.
- Dual‑caliber compatibility – Works with both 45 Colt and 454 Casull cases, letting you switch between the two without swapping dies.
- Requires crimp groove – Only effective on jacketed bullets that already have a cannelure; the die will not form a groove on smooth‑cased projectiles.
- No advantage over newer Lee dies – If you already own Lee dies dated 1986 or later, this die offers little additional benefit because those models already use the modified taper crimp.
- Standard press mounting – Fits any standard reloading press that accepts Lee’s 90786 die size, making installation straightforward.
Specifications
| Brand | Lee |
| Caliber / Gauge | .45 Colt |
| Product name | Taper Crimp Die 45 Colt / 454 Casull |
| Model / MPN | 90786 |
| UPC | 734307907860 |
| Die type | Taper Crimp Die |
| Material | Hardened steel |
| Requires crimp groove | Yes |
| Press compatibility | Standard Lee reloading press |
| Condition | Factory New |
What’s included
- 1 × Lee Taper Crimp Die 45 Colt / 454 Casull (MPN 90786)
Good to know
- Works only with jacketed bullets that already have a crimp groove (cannelure).
- If you own Lee dies dated 1986 or later, this die provides little additional benefit because those models already use the modified taper crimp.
- Install into any standard Lee‑compatible reloading press; no special tools required.
Additional Information
Brand: |
Lee |
Cartridge (SAAMI): |
454 Casull |
Die Type: |
Taper Crimp |
Material: |
Steel |
Model: |
Taper |
Primary Application: |
All Purpose |
Series: |
Crimp |
GTIN / UPC: |
734307907860 |
Packaging Type: |
EA |
Package Quantity: |
1 |
