MEC

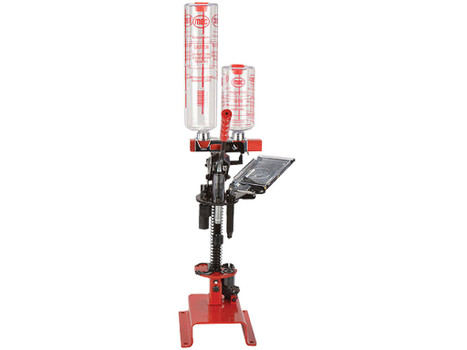

MEC 812020 Sizemaster Shotshell Reloading Press Cast Iron
- SKU:
- 812020
- UPC:
- 098489015240
- MPN:
- 812020
Description
The first thing you notice about the Sizemaster is its heft—cast iron gives the press a rock‑solid feel that dampens the bounce you get from lighter aluminum units. That stability translates directly into tighter tolerances when you pull the lever, so each case comes out the same length, headspace and concentricity, gauge after gauge. The Power Ring collet is the heart of the resizing cycle. Unlike traditional collets that simply clamp the case, the Power Ring actually pulls the base back to the exact factory‑specified length, eliminating the need for a separate truing step. Pair that with the E‑Z Prime auto‑primer feed, and you’ve got a two‑in‑one solution that moves a case from empty to primed in a single, fluid motion. Because the press is engineered for 12, 20, 28 gauge and .410 bore, you can keep a single bench unit and still cover the entire spectrum of common shotshells. Whether you’re loading brass heads for target work or steel heads for high‑volume hunting, the resizing station adapts without extra accessories, making the Sizemaster a versatile workhorse for any shotgun reloader.
Key features
- Cast‑Iron Construction – The solid cast‑iron frame provides a stable, vibration‑free platform for consistent resizing across all supported gauges.
- Single‑Stage Design – One‑hand operation lets you control each cycle, ideal for fine‑tuning pressure and ensuring uniform headspacing.
- Power Ring Collet Resizer – The collet pulls the base back to factory dimensions, delivering consistent case length without extra tools.
- E‑Z Prime Auto‑Primer Feed – Integrated primer dispenser automatically drops a primer onto each case, speeding up the priming step.
- Gauge Versatility – Works with 12, 20, 28 gauge and .410 bore shells, so you can reload a full range of common shotshells with one press.
- Handles Brass or Steel Heads – The resizing station accommodates both brass and steel heads, high‑ and low‑base, expanding ammo options.
Specifications
| Brand | MEC |
| Product name | Sizemaster Shotshell Reloading Press |
| Model / MPN | 812020 |
| UPC | 098489015240 |
| Construction | Cast Iron |
| Press type | Single‑Stage Shotshell Reloading Press |
| Supported gauges | 12 Gauge, 20 Gauge, 28 Gauge, .410 Bore |
| Resizing system | Power Ring collet returns bases to factory dimensions |
| Primer feed | E‑Z Prime auto‑primer dispenser |
| Head‑type compatibility | Works with brass or steel heads, high and low base |
What’s included
- 1 × MEC Sizemaster Shotshell Reloading Press
Good to know
- The press requires a sturdy bench surface; its weight helps keep it stable during operation.
- No separate primer tray is needed—the auto‑primer feed is built‑in, but you’ll need a supply of compatible primers on hand.
- Because the unit is cast iron, handle with care when moving; it’s heavy and can chip if dropped.
Additional Information
Brand: |
MEC |
Gauge: |
20 Gauge |
Material: |
Cast Iron |
Model: |
Sizemaster |
Packaging Type: |
EA |
Primary Application: |
Competition |
Series: |
Shotshell Reloader |
GTIN / UPC: |
098489015240 |
Finish: |
Black |
Package Quantity: |
1 |
