Nocpix

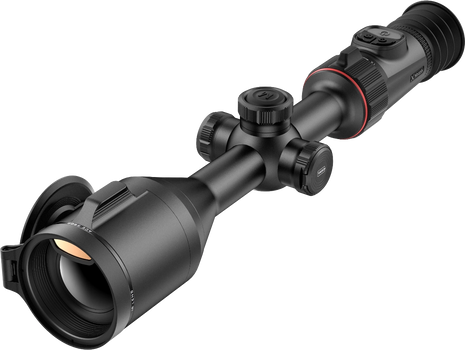

Nocpix ACEH50 Ace H50 Thermal Black 3x50mm, Digital 8x Zoom, 640x480 12 Microns 60Hz Resolution
- SKU:
- ACEH50
- UPC:
- 850048751491
- MPN:
- ACEH50
- Width:
- 7.00 (in)
- Height:
- 5.10 (in)
- Depth:
- 23.90 (in)
Description
The ACE H50 packs a 50 mm f/0.9 germanium objective into a compact 14.37‑inch package, delivering a high‑sensitivity thermal picture on a 1.03‑inch AMOLED display. The 640×512, 12 µm pixel sensor runs at 60 Hz, giving you fluid imaging that tracks moving game without the blur you see on slower units.
A built‑in 1‑3× ocular magnifier lets you zoom the image optically, preserving reticle alignment and eliminating the pixelation that digital zoom can cause. With an 8.8 × 7° field of view, you can acquire targets quickly while still seeing enough detail to make precise shots.
Power is handled by a dual‑battery system: a 4000 mAh internal cell charged via USB‑C and a hot‑swap 18650 cell that you can replace in the field. The spec sheet lists up to seven hours of runtime, enough for a full day of hunting or tactical use.
The optic mounts to any rifle with a standard 30 mm rail, offers 50 mm eye relief for comfortable viewing, and finishes in matte black to keep reflections low. No integrated laser rangefinder is included on the H50 model, keeping weight and cost down while still delivering premium thermal performance.
Key features
- 50 mm f/0.9 Germanium Objective – Delivers high‑resolution infrared imaging with a fast lens, giving bright images even at long ranges.
- 640×512 12 µm Thermal Sensor – Provides clear thermal pictures; the sensor runs at 60 Hz for smooth motion rendering.
- Fixed 3× Ocular Magnifier – Adds optical magnification to the 2560×2560 AMOLED display without shifting the reticle, useful for spotting at distance.
- 8.8 × 7° Field of View – Wide enough to acquire targets quickly while still offering enough detail for precise aiming.
- Dual Battery System – 4000 mAh internal + 18650 removable – Internal USB‑C charge plus hot‑swap 18650 cell lets you stay in the field for up to seven hours without downtime.
- 30 mm Tube, Black Finish – Standard 30 mm mounting fits common rifle rails; matte black finish reduces glare and blends with tactical gear.
Specifications
| Brand | Nocpix |
| Product Name | ACE H50 Thermal Optic |
| Model / MPN | ACEH50 |
| UPC | 850048751491 |
| Objective Lens | 50 mm f/0.9 |
| Sensor Resolution | 640 × 512 |
| Pixel Pitch | 12 µm |
| Frame Rate | 60 Hz |
| Optical Magnification | 3× (fixed ocular magnifier) |
| Digital Zoom | 8× (manufacturer spec) |
| Field of View | 8.8 × 7 degrees |
| Eye Relief | 50 mm |
| Tube Diameter | 30 mm |
| Weight | 6.80 kg |
| Finish | Black |
| Battery Type | 18650 removable + internal 4000 mAh |
| Battery Life | Up to 7 hrs |
| Optics Type | Thermal / Night Vision |
| Reticle Type | Other |
| Mounting Interface | Standard 30 mm rail |
| Integrated Laser Rangefinder | None (H50 model) |
What’s included
- 1 × Nocpix ACE H50 Thermal Optic
- 1 × Removable 18650 battery
- Owner’s manual
Good to know
- The optic does not include an integrated laser rangefinder; pair it with a separate LRF if range data is required.
- Weight of 6.8 kg includes batteries and packaging; the optic alone is lighter but still heavier than many day scopes.
- The 30 mm tube fits standard Picatinny or NATO rails; ensure your rifle’s rail is compatible before purchase.
Additional Information
Field of View: |
8.80 x 7 Degrees |
Objective: |
50 mm |
Battery Life: |
Up to 7 hrs |
Brand: |
Nocpix |
Maximum Magnification: |
3 |
Minimum Magnification: |
3 |
Model: |
Ace |
Series: |
H50 |
Tube Diameter: |
30 mm |
GTIN / UPC: |
850048751491 |
Eye Relief: |
50 mm |
Overall Length: |
14.370 in |
Product Weight: |
6.8000 kg |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
18650 |
Finish: |
Black |
Reticle Type: |
Other |
Color: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
