Nocpix

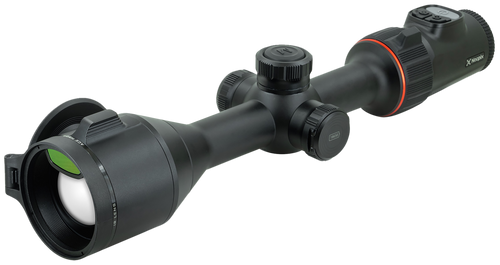

Nocpix ACEH50R Ace H50R LRF Thermal Black 3x50mm Digital 8x Zoom, 640x512 12 Microns 60 Hz Resolution
- SKU:
- ACEH50R
- UPC:
- 850048751415
- MPN:
- ACEH50R
- Width:
- 5.70 (in)
- Height:
- 5.10 (in)
- Depth:
- 18.00 (in)
Description
The ACE‑H50R’s 50 mm f/0.9 germanium objective pairs with a 640×512 thermal sensor to give you crisp heat signatures at ranges where most thermal optics start to lose detail. With a 3× base magnification and an 8× digital zoom, the internal 2560×2560 AMOLED screen can display up to 24× total magnification without shifting the reticle.
A laser rangefinder built directly into the objective lens measures out to 1,300 yards, feeding distance data to the onboard ballistic calculator. Load your custom cartridge profile and the scope spits out drop values, letting you make fast, accurate shots on the move.
The housing is machined from T‑6063 aluminum and sealed to an IP67 rating, so rain, dust, and temperature extremes won’t slow you down. Powered by a standard 18650 cell, the unit runs over seven hours and can be hot‑swapped or recharged via a lock‑out USB‑C port.
Key features
- 50 mm f/0.9 germanium lens – Delivers high‑resolution thermal imagery and long‑range detection out to 2,850 yards.
- 3× base + 8× digital zoom – Provides a clear 3× optical view and up to 24× total magnification on the AMOLED display.
- Integrated 1300‑yard laser rangefinder – Enables precise distance measurement and ballistic calculations without adding bulk.
- 640×512, 12 µm pixel, 60 Hz sensor – Offers detailed thermal images with a NETD of ≤15 mK for reliable target identification.
- IP67 waterproof & dustproof – Allows use in harsh environments, from sub‑zero to 122 °F operating temperatures.
- 18650 rechargeable battery, 7 hr run time – Swap or charge via USB‑C in the field for extended hunting sessions.
Specifications
| Brand | Nocpix |
| Product name | ACE H50R LRF Thermal Scope |
| Model / MPN | ACE-H50R |
| UPC | 850048751415 |
| Objective lens | 50 mm f/0.9 germanium |
| Base magnification | 3× |
| Digital magnification | 8× (up to 24× total) |
| Sensor resolution | 640×512 |
| Pixel size | 12 µm |
| Frame rate | 60 Hz |
| NETD | ≤15 mK |
| Detection range | 2,850 yards |
| Laser rangefinder range | 1,300 yards |
| Display | 2560×2560 AMOLED |
| Eye relief | 50 mm |
| Reticle type | Crosshair (Second Focal Plane) |
| Field of view | 8.80 × 7.0 degrees |
| Waterproof rating | IP67 |
| Operating temperature | -4 °F to 122 °F |
| Battery type | 18650 Li‑Ion |
| Battery life | Up to 7 hours |
| Weight | 39.5 oz |
| Overall dimensions (L×W×H) | 14.37 × 3.54 × 2.68 in |
| Finish | Black |
| Optic coating | Multi‑Coated |
| Parallax adjustment | Adjustable (Side Focus) |
| Reticle focal plane | Second Focal Plane |
| Recording | Onboard photo/video, 64 GB storage |
| Wi‑Fi | Yes, with mobile app |
What’s included
- 1 × Nocpix ACE H50R LRF Thermal Scope
- 1 × 18650 rechargeable battery
- USB‑C charging cable
- Owner’s manual
Good to know
- The scope mounts to standard 30 mm rings; ensure your rifle’s rail matches this size.
- Battery is a common 18650 cell—spare batteries are readily available for extended outings.
- IP67 rating means the unit can be fully submerged briefly, but avoid prolonged submersion.
- Digital zoom does not affect reticle alignment; the reticle remains fixed in the second focal plane.
Additional Information
Field of View: |
8.80 x 7 Degrees |
Objective: |
50 mm |
Battery Life: |
Up to 7 hrs |
Brand: |
Nocpix |
Maximum Magnification: |
3 |
Minimum Magnification: |
3 |
Model: |
Ace |
Optic Coating: |
Multi-Coated |
Parallax Adjustment: |
Adjustable (Side Focus) |
Reticle Focal Plane: |
Second Focal Plane (SFP) |
Series: |
H50R LRF |
GTIN / UPC: |
850048751415 |
Optics Type: |
Night Vision / Thermal |
Battery Type: |
18650 |
Finish: |
Black |
Reticle Type: |
Crosshair |
Waterproof: |
True |
Color: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
