PRIMARY ARMS OPTICS

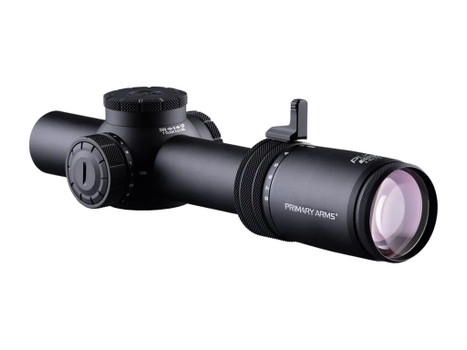

PA 610221 PLXC 1-8X24F RDB GRIF MIL G2
- SKU:
- 610221
- UPC:
- 810178480319
- MPN:
- 610221
Description
The PLxC 1‑8x FFP RDB brings a diffractive red‑dot bright reticle into a true low‑power variable scope. Because the reticle is first‑focal‑plane, every magnification level—from the 1× red‑dot view to the full 8×—keeps the grid and aiming points perfectly scaled, eliminating the guesswork of holdovers. The ACSS Griffin MIL G2 pattern adds a full MIL grid, vertical and horizontal ranging stadia, and the classic horseshoe‑chevron design for fast, precise shots at any distance. Japanese ED glass and a 30 mm high‑strength tube give the scope a crisp, high‑contrast image with an ultra‑wide 121 ft field of view at 100 yd. The AutoLive motion‑sensing illumination system keeps the battery alive longer while delivering instant illumination when you need it, and the hardcoat anodized black finish protects the optics from water, shock, and fog. At just 9.28 inches long and 16.95 oz, the PLxC stays light enough for close‑quarters maneuvering yet robust enough for 800‑yard engagements.
Key features
- 9.28‑inch Length – The compact length keeps the rifle’s profile low while still providing ample eye relief for rapid target acquisition.
- 16.95‑oz Weight – Lightweight construction reduces front‑hand fatigue during extended engagements.
- 1‑8× Magnification – Low‑power range lets you transition from a 1× red‑dot view to precise 8× magnification without changing optics.
- First‑Focal‑Plane Reticle – The reticle stays true at every magnification, so holdovers and ranging are accurate from 1× to 8×.
- ACSS Griffin MIL G2 Reticle – Diffractive red‑dot bright (RDB) design delivers a bright, battery‑efficient dot with a full MIL grid for quick ranging.
- AutoLive Illumination – Motion‑sensing illumination conserves battery life while ensuring the reticle lights up instantly when needed.
- 30 mm High‑Strength Tube – Robust tube maintains zero shift and protects internal optics from shock.
- Hardcoat Anodized Black Finish – Durable finish resists wear, water, shock, and fog, extending service life in harsh environments.
- Premium Japanese ED Glass – Enhanced light transmission and color fidelity give a clear, bright image even in low light.
Specifications
| Brand | Primary Arms |
| Product name | Compact PLxC 1-8x24 FFP RDB Rifle Scope |
| Model / MPN | PA-PLXC-1-8X24F-RDB-GRIF-MIL-G2 |
| UPC | 810178480319 |
| Weight | 16.95 oz |
| Objective lens diameter | 24 mm |
| Magnification range | 1-8x |
| Reticle | ACSS Griffin MIL G2 (diffractive RDB) |
| Reticle type | First Focal Plane |
| Tube diameter | 30 mm |
| Glass type | Premium Japanese ED |
| Illumination | AutoLive motion‑sensing |
| Finish | Hardcoat anodized black |
| Water resistance | Yes |
| Shock resistance | Yes |
| Fog resistance | Yes |
| Warranty | Lifetime |
What’s included
- 1 × Primary Arms Compact PLxC 1-8x24 FFP RDB Rifle Scope
- Flip‑up lens caps
- CR2032 battery
- Instruction manual
- Cleaning cloth
Good to know
- The scope’s 30 mm tube is compatible with standard 30 mm Picatinny rings; ensure your mount matches this diameter.
- AutoLive illumination activates with motion; the battery life will vary with illumination intensity settings.
- The hardcoat anodized finish provides durability but does not affect optical performance; keep the lenses clean for optimal clarity.
Additional Information
Model: |
PLxC |
Objective: |
24 mm |
Adjustment Increment: |
0.1 mrad |
Brand: |
Primary Arms |
Eye Relief: |
95 mm |
Field of View: |
121 ft@100yd |
Maximum Magnification: |
8 |
Minimum Magnification: |
1 |
Parallax Adjustment: |
Adjustable (Side Focus) |
Reticle Focal Plane: |
First Focal Plane (FFP) |
Tube Diameter: |
30 mm |
GTIN / UPC: |
810178480319 |
Optics Type: |
Riflescope |
Battery Type: |
CR2032 |
Finish: |
Black |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Illuminated |
Waterproof: |
True |
