PRIMARY ARMS OPTICS

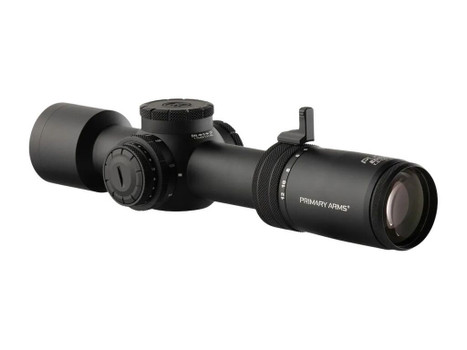

PA 610230 PLXC 1.5-12X36F RDB RAPTOR-5.56Y G2
- SKU:
- 610230
- UPC:
- 810178480456
- MPN:
- 610230
Description
The PLxC’s 30 mm tube houses a full‑travel elevation turret (100 MOA) and windage (50 MOA), giving you the adjustment range you need for both short‑range hunting and precision benchrest work. The steel‑on‑steel turrets click in 0.1 mil increments, and you can swap between a capped or exposed elevation turret depending on whether you prefer a clean profile or quick visual reference.
Its ACSS Raptor 5.56/308 G2 reticle lives in the first focal plane, meaning the ranging grid and the Red Dot Bright horseshoe stay true at every magnification. That makes hold‑overs and wind‑holds intuitive from 1.5× all the way up to 12×, and the illuminated reticle stays bright thanks to AutoLive’s motion‑sensing power‑save feature.
Built around Japanese ED glass, the 36 mm objective delivers edge‑to‑edge clarity and color fidelity across the entire zoom range. The hard‑coat anodized aluminum body is waterproof, shock‑ and fog‑resistant, and the whole package weighs just 19.7 oz, keeping the rifle’s balance point forward for smoother handling.
Key features
- 1.5‑12× Magnification Range – Covers close‑quarters to long‑range shooting, letting you stay on target from 1 yard out to 800 yards without swapping optics.
- 36 mm Objective Lens – Delivers a wide field of view and forgiving eye box, so you stay aware of the environment even at high zoom.
- First‑Focal‑Plane ACSS Raptor 5.56/308 G2 Reticle – Provides mil‑dot ranging, moving‑target leads, and a true Red Dot Bright horseshoe that scales with magnification for rapid target acquisition.
- AutoLive Motion‑Sensing Illumination – Battery‑saving system powers the reticle down at rest and wakes it the instant the rifle moves, extending CR2032 life.
- User‑Configurable Steel‑On‑Steel Turrets – 0.1 mil clicks with 100 MOA elevation and 50 MOA windage; choose capped or exposed elevation turret to suit your shooting style.
- Compact, Rugged Design – 9.75 in, 19.7 oz – Lightweight aluminum body with hard‑coat anodized finish survives recoil, drops, and harsh weather while keeping the rifle balanced.
Specifications
| Brand | Primary Arms |
| Product name | PLxC 1.5‑12×36 mm FFP RDB Rifle Scope |
| Model / MPN | 610220 |
| UPC | 810178480456 |
| Magnification | 1.5× – 12× |
| Objective lens diameter | 36 mm |
| Tube diameter | 30 mm |
| Length (overall) | 9.75 in |
| Weight | 19.67 oz |
| Reticle | ACSS Raptor 5.56/308 G2 (First Focal Plane) |
| Illumination | AutoLive motion‑sensing |
| Adjustment range | 100 MOA elevation / 50 MOA windage |
| Adjustment click | 0.1 mil |
| Mounting type | 30 mm scope mount (UML‑compatible) |
| Material | Aluminum |
| Finish | Hard‑coat anodized |
| Battery included | CR2032 |
| Warranty | Limited Lifetime |
What’s included
- 1 × Primary Arms PLxC 1.5‑12×36 mm FFP RDB Rifle Scope
- CR2032 battery
- Owner’s manual
Good to know
- The scope’s 30 mm tube requires a 30 mm (UML) mount; verify your rifle’s rail or mount compatibility before purchase.
- AutoLive illumination draws power only when the rifle is moved, but a fresh CR2032 battery is still recommended for extended field use.
- The first‑focal‑plane reticle means the ranging grid scales with magnification; practice at various zoom levels to master hold‑overs.
- Hard‑coat anodized finish provides corrosion resistance, but regular cleaning after exposure to salt or mud will prolong finish life.
Additional Information
Brand: |
Primary Arms |
Eye Relief: |
3.55 in |
Maximum Magnification: |
12 |
Minimum Magnification: |
1.5 |
Model: |
610230 |
Objective: |
36 mm |
Optic Coating: |
Fully Multi-Coated |
Parallax Adjustment: |
Adjustable (Side Focus) |
Reticle Focal Plane: |
First Focal Plane (FFP) |
Tube Diameter: |
30 mm |
GTIN / UPC: |
810178480456 |
Optics Type: |
Riflescope |
Finish: |
Anodized |
Reticle Type: |
Chevron |
Waterproof: |
True |
Package Quantity: |
1 |
Packaging Type: |
EA |
