PRIMARY ARMS OPTICS

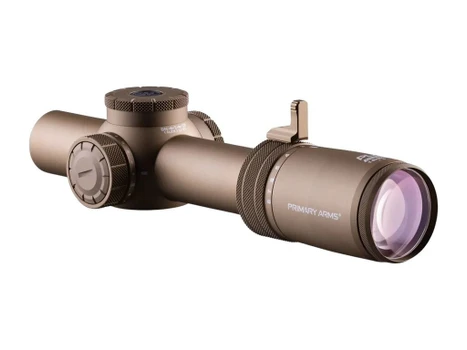

PA 610226 PLXC 1-8X24F RDB RAPTOR 5.56Y G2 FDE
- SKU:
- 610226
- UPC:
- 810178480333
- MPN:
- 610226
Description
The PLxC packs a 24 mm objective and a 30 mm main tube into a compact LPVO that slides onto most tactical mounts. Its 1‑8× magnification range gives you the flexibility of a close‑quarters rifle scope while still offering enough reach for mid‑range engagements. Because the reticle sits in the first focal plane, the hold‑over you learn at 1× stays true all the way up to 8×, simplifying range estimation on the fly.
Illumination is powered by a standard battery (listed as “Other” on the spec sheet) and drives the ACSS Raptor 5.56 Y G2 reticle, a ballistic‑matched pattern for 5.56 mm and .308 Win‑Mag cartridges. The reticle’s illuminated dots stay crisp even in dim light, and the .1 mrad adjustment clicks let you fine‑tune windage and elevation with sub‑MOA precision. Fully multi‑coated lenses push light transmission to the max, giving a clear, high‑contrast image at every magnification step.
Built for the rigors of tactical and competition shooting, the scope is sealed against water, shock, and fog. Its compact dimensions (6.2 × 18.7 × 4.6 in) and 3.19 lb weight keep the rifle’s balance forward, while the flat dark earth finish blends into most modern camo patterns. No extra tools are needed to mount the PLxC – just slide it onto a compatible 30 mm ring and you’re ready to go.
Key features
- 24 mm Objective Lens – A larger objective gathers more light, delivering a bright picture even at the maximum 8× magnification.
- 30 mm Main Tube – Standard tube size fits most tactical rings and mounts without extra adapters.
- 1‑8× Variable Magnification – Low‑power 1× provides a wide field for quick target acquisition; 8× lets you engage at longer ranges while staying in the same optic.
- First Focal Plane (FFP) – Reticle scales with magnification, keeping hold‑over consistent from 1× to 8×.
- Illuminated ACSS Raptor 5.56 Y G2 Reticle – Designed for 5.56 mm/.308 Win‑Mag ballistics; illumination lets you see the reticle in low‑light or night conditions.
- 0.1 mrad (≈0.34 MOA) Adjustment Increment – Fine windage and elevation tweaks let you dial in sub‑MOA accuracy without overshooting.
- Fully Multi‑Coated Optics – Multiple anti‑reflective layers boost transmission and reduce glare across the entire magnification range.
- Waterproof, Shock‑ and Fog‑Resistant – Sealed construction protects internal optics from rain, recoil shock, and temperature‑induced fog.
Specifications
| Brand | Primary Arms |
| Product name | PLxC 1-8x24mm FFP RDB Scope |
| Model / MPN | 610226 |
| UPC | 810178480333 |
| Objective lens diameter | 24 mm |
| Main tube diameter | 30 mm |
| Magnification range | 1‑8× |
| Minimum magnification | 1× |
| Maximum magnification | 8× |
| Reticle type | Illuminated ACSS Raptor 5.56 Y G2 |
| Reticle focal plane | First Focal Plane (FFP) |
| Adjustment increment | 0.1 mrad |
| Parallax adjustment | Adjustable (objective) |
| Optic coating | Fully Multi‑Coated |
| Waterproof | True |
| Weight | 3.185 lb |
| Width | 6.200 in |
| Length | 18.700 in |
| Height | 4.600 in |
| Battery type | Other |
| Field of view (100 yd) | 121 ft |
| Optics type | Riflescope |
| Color | Flat Dark Earth |
What’s included
- 1 × Primary Arms PLxC 1-8x24mm FFP RDB Scope
Good to know
- Parallax is adjusted via the objective lens; ensure the scope is level for optimal accuracy.
- The illuminated reticle requires a battery; replace when illumination dims.
- Fits standard 30 mm tactical rings; no additional adapters are needed.
- Weight of 3.19 lb includes the scope only; mounting hardware adds additional weight.
Additional Information
Objective: |
24 mm |
Model: |
PLxC |
Adjustment Increment: |
0.1 mrad |
Brand: |
Primary Arms |
Field of View: |
121 ft@100yd |
Maximum Magnification: |
8 |
Minimum Magnification: |
1 |
Optic Coating: |
Fully Multi-Coated |
Parallax Adjustment: |
Adjustable (Objective) |
Reticle Focal Plane: |
First Focal Plane (FFP) |
Tube Diameter: |
30 mm |
GTIN / UPC: |
810178480333 |
Optics Type: |
Riflescope |
Battery Type: |
Other |
Reticle Type: |
Illuminated |
Waterproof: |
True |
Color: |
Flat Dark Earth |
Package Quantity: |
1 |
Packaging Type: |
EA |
