PRIMARY ARMS OPTICS

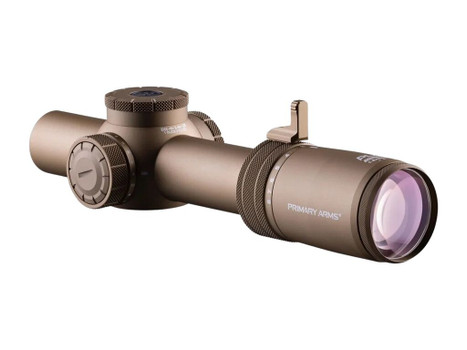

PA 610224 PLXC 1-8X24F RDB GRIF MIL G2 FDE
- SKU:
- 610224
- UPC:
- 810178480326
- MPN:
- 610224
Description
The PLxC packs a 24 mm objective and 1‑8× variable power into a 9.28‑in overall length, making it one of the smallest LPVOs on the market. Its 30 mm main tube slides onto any standard rail, and the first‑focal‑plane ACSS Griffin MIL‑G2 reticle stays true at every magnification setting, so you can trust your holdovers whether you’re at 25 yd or 300 yd.
Premium Japanese ED lenses give the image a bright, high‑contrast look even in dim conditions, while the ultra‑wide 121 ft field of view at 100 yd lets you keep the target in sight without hunting for it. The illuminated reticle runs off a CR2032 battery, offering .1 MRAD precision and adjustable brightness for day, dusk, or night shooting.
Weighing just 16.95 oz, the PLxC adds minimal load to your rifle, and the flat dark earth finish blends into tactical builds. Included flip‑up lens caps protect the optics, a cleaning cloth and manual round out the package, so you’re ready to mount and fire right away.
Key features
- 30 mm Main Tube – Standard 30 mm tube lets you mount the PLxC on any Picatinny rail without adapters, keeping the build clean and rugged.
- 1‑8× Magnification – Variable power covers everything from tight indoor rooms to 100‑yard engagements, giving you flexibility without swapping optics.
- First Focal Plane Reticle – The ACSS Griffin MIL‑G2 reticle scales with magnification, so holdovers stay accurate at any zoom level.
- .1 MRAD Illuminated Reticle – CR2032‑powered illumination lets you see the reticle in low light, with adjustable brightness for day or night use.
- Premium Japanese ED Lenses – Extra‑low‑dispersion glass delivers superior color fidelity and light transmission, reducing glare and eye strain.
- Ultra‑Wide Field of View – 121 ft at 100 yd (≈10 °) provides a generous sight picture, making target acquisition fast and intuitive.
Specifications
| Brand | Primary Arms |
| Product name | PLxC 1-8x24mm Compact LPVO |
| Model / MPN | PA-PLXC-1-8X24F-RDB-GRIF-MIL-G2-FDE |
| UPC | 810178480326 |
| Weight | 16.95 oz |
| Objective lens diameter | 24 mm |
| Magnification range | 1-8x |
| Main tube diameter | 30 mm |
| Reticle type | ACSS Griffin MIL‑G2 |
| Reticle illumination | .1 MRAD, CR2032 battery |
| Focal plane | First Focal Plane |
| Lens coating | Premium Japanese ED |
| Field of view (100 yd) | 121 ft |
| Finish | Flat Dark Earth |
| Included accessories | Flip‑up lens caps, cleaning cloth, instruction manual |
What’s included
- 1 × Primary Arms PLxC 1-8x24mm Compact LPVO
- Flip‑up lens caps
- Cleaning cloth
- Instruction manual
Good to know
- The PLxC’s first‑focal‑plane reticle means holdovers stay accurate at any magnification, but you’ll need to re‑zero after major changes to the mount or rifle bedding.
- Battery life varies with illumination brightness; a fresh CR2032 typically provides several hundred hours of low‑light use.
- The flat dark earth finish is a tactical color; if you prefer a different aesthetic, aftermarket coatings are available but may affect warranty.
Additional Information
Model: |
PLxC |
Objective: |
24 mm |
Adjustment Increment: |
0.1 mrad |
Brand: |
Primary Arms |
Eye Relief: |
3.2 in |
Field of View: |
121 ft@100yd |
Maximum Magnification: |
8 |
Minimum Magnification: |
1 |
Parallax Adjustment: |
Fixed (None) |
Reticle Focal Plane: |
First Focal Plane (FFP) |
Tube Diameter: |
30 mm |
GTIN / UPC: |
810178480326 |
Optics Type: |
Riflescope |
Battery Type: |
CR2032 |
Color: |
Flat Dark Earth |
Package Quantity: |
1 |
Packaging Type: |
EA |
Reticle Type: |
Illuminated |
Waterproof: |
True |
