ACOG 5.5x50 BAC Riflescope - .308/7.62 BDC UPC: 719307302037

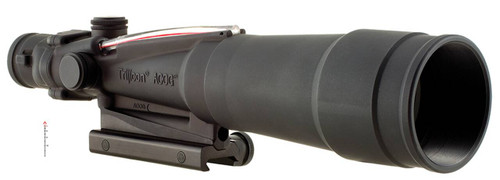

Trijicon ACOG 5.5x50 Red Chevron BAC Reticle Rifle Scope

The Trijicon ACOG 5.5x50 Gunsight with Red Chevron BAC Flattop .308 Reticle TA55 is designed for use with the M16 family every feature of its mechanical and optical design provides increased hit potential in all lighting conditions. The chevron reticle of the Trijicon Rifle Scope is helps zero in using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19" at 300 meters. This allows range estimation for silhouette targets. Trijicon TA55 5.5 x 50mm ACOG Advanced Combat Optical Gunsights hit fast in any light. The Trijicon ACOG 5.5 x 50 Rifle Scope is internally-adjustable and includes a compact telescopic sight with tritium illuminated reticle patterns for use in low light or at night. Bindon Aiming Concept (BAC) models feature bright daytime reticles using fiber optics which collect ambient light and combine traditional, precise distance marksmanship with close-in aiming speed. Although Trijicon ACOG 5.5 x 50mm Rifle Scopes TA-55 have many features which are very advantageous for military use, they were developed by Trijicon without government funding.

Specifications for Trijicon ACOG 5.5x50 Red Chevron BAC Reticle Rifle Scope:

Objective Lens Diameter: 50 mm
Magnification: 5.5 x
Reticle: Illuminated Red TA55A Chevron
Exit Pupil: 9.1 mm
Field of View, Linear: 18.4 ft at 100 yds
Field of View, Angle: 3.5 degrees
Eye Relief: 2.2 in
Color: Black
Weight: 25.6 oz
Fabric/Material: Forged Aluminum
Length: 12 in
Illumination Type: Fiber Optics/Tritium
Illumination Color: Red
Adjustment Type: MOA
Adjustment Click Value: 1/5 MOA
Optical Coating: Fully Multicoated
Attachment/Mount Type: TA51
Water Resistance Level: Waterproof
Shockproof: Yes
Fogproof: Yes
Finish: Matte
Package Type: Polymer hard case
Included Accessories: 1 Lanyard Assembly for Adjuster Caps Fit TA71E, 1 5.5x50 Scopecoat Fit TA65, 1 Flattop Mount Fit TA51, 1 Trijicon Logo Sticker Fit PR15, 1 LensPen Fit TA56, 1 Warranty Card, 1 Manual, TA51 Mount
Magnification Type: Fixed

Features of Trijicon TA55 ACOG 5.5x50 Chevron .308 Reticle Rifle Scopes:

Military-Grade Aluminum Alloy Housing Forged 7075-T6 aircraft aluminum alloy housing provides for a nearly indestructible sighting system
Binding Aiming Concept (BAC) Trijicon ACOG models equipped with BAC allow use of the both-eyes-open aiming method along with scope magnification sighting for rapid target acquisition - in any light
Longer Eye-Relief Maximum eye-relief for larger caliber rifles and large exit pupil for faster target acquisition
Internally Adjustable Since only the prism housing moves, the ACOG is much more rugged than the conventional designs
Trijicon Fiber Optics Automatically adjusts the brightest level and contrast of the reticle to available light conditions
Trijicon Tritium Phosphor Lamp Aiming reticle glows in low-light conditions for quick target acquisition. Lamp is guaranteed to illuminate up to 15 years.
Totally Battery-Free ACOG delivers increased hit potential in all lighting conditions - without the use of failure-prone batteries
Broad Band Anti-Reflective Coated Lenses Multi-coated lenses provide superior clarity and light gathering capabilities with zero distortion
Lifetime Warranty

Package Contents:

Trijicon ACOG TA55 5.5 x 50 Gun Sight - Red Chevron BAC Flattop .308 Reticle
Thumbscrew Flattop Adapter (TA51)
5.5x50 Scopecoat (TA65)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
ACOG Manual
Warranty Card
